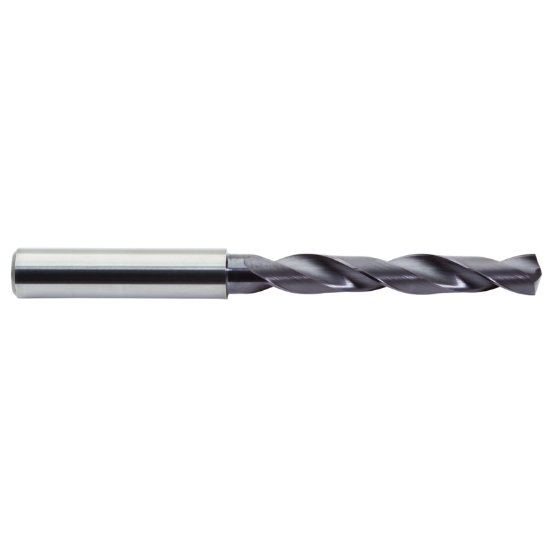

Picture of M.A. Ford 2XDSR0236T Carbide Drill Solid Carbide 140° - 142° 0.023 Dia 0.023 Shank 1.023 OAL 2 Flute 0.278 Flute Length Carbide TiN

M.A. Ford 2XDSR0236T Carbide Drill Solid Carbide 140° - 142° 0.023 Dia 0.023 Shank 1.023 OAL 2 Flute 0.278 Flute Length Carbide TiN

Part Number: MAF75956 ISO: 2XDSR0236T
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1117092
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

M.A. FORD 2XDSR0236T TIN DRL 0.6MM SOLID REG Carbide TiN Twister XD® 5.0XD Flute 0.2780 7.06MM Carbide Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 1.0236 26.00MM
Shank/Pilot Dia 0.0236 0.60MM
Flutes/Inserts 2
Tool Dia 0.0236 0.60MM
Flute Length 0.2780 7.06MM
Dia Deep 5.0x Dia
Geometry & Angles
Included Angle 140° - 142°
Performance & Capacity
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Cut Dia Min 0.0236 0.60MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TIN
