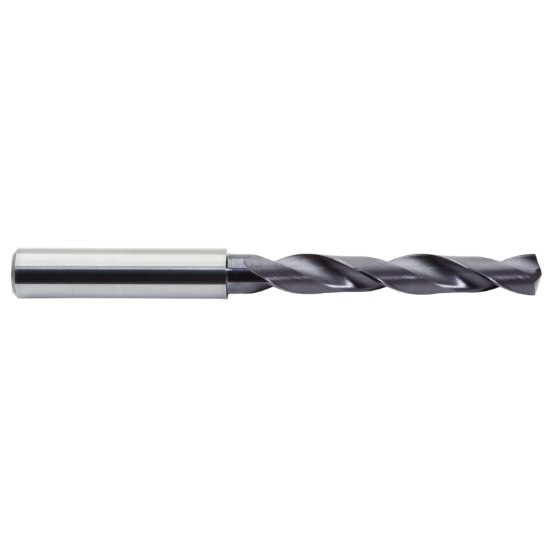

Picture of M.A. Ford 2XDSR0197A Carbide Drill Solid Carbide 140° - 142° 0.019 Dia 0.019 Shank 1.023 OAL 2 Flute 0.236 Flute Length Carbide AlTiN

M.A. Ford 2XDSR0197A Carbide Drill Solid Carbide 140° - 142° 0.019 Dia 0.019 Shank 1.023 OAL 2 Flute 0.236 Flute Length Carbide AlTiN

Part Number: MAF28001 ISO: 2XDSR0197A
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1117090
Vendor: Sussex Tool and Supply
$42.17

Description

M.A. FORD 2XDSR0197A DRILL 0.5MM SOLID REGULA Carbide AlTiN Twister XD® 5.0XD Flute 0.2360 5.99MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 1.0236 26.00MM
Shank/Pilot Dia 0.0197 0.50MM
Flutes/Inserts 2
Tool Dia 0.0197 0.50MM
Flute Length 0.2360 5.99MM
Dia Deep 5.0x Dia
Geometry & Angles
Included Angle 140° - 142°
Performance & Capacity
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Cut Dia Min 0.0197 0.50MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
