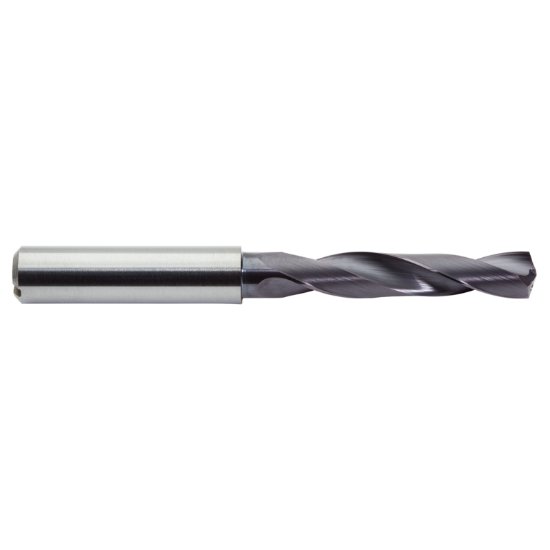

Picture of M.A. Ford 2XDCS1811A Carbide Drill Coolant Thru Carbide 140° - 142° 0.181 Dia 0.196 Shank 2.480 OAL 2 Flute 1.024 Flute Length Carbide AlTiN

M.A. Ford 2XDCS1811A Carbide Drill Coolant Thru Carbide 140° - 142° 0.181 Dia 0.196 Shank 2.480 OAL 2 Flute 1.024 Flute Length Carbide AlTiN

Part Number: MAF04450 ISO: 2XDCS1811A
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1116552
Vendor: Sussex Tool and Supply
$106.85

Description

M.A. FORD 2XDCS1811A 4.6MM 3X COOLANT DRILL Carbide AlTiN Twister XD® 3.0XD Flute 1.0240 26.01MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 2.4803 63.00MM
Shank/Pilot Dia 0.1969 5.00MM
Flutes/Inserts 2
Tool Dia 0.1811 4.60MM
Flute Length 1.0240 26.01MM
Dia Deep 3.0x Dia
Geometry & Angles
Included Angle 140° - 142°
Performance & Capacity
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Cut Dia Min 0.1811 4.60MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
