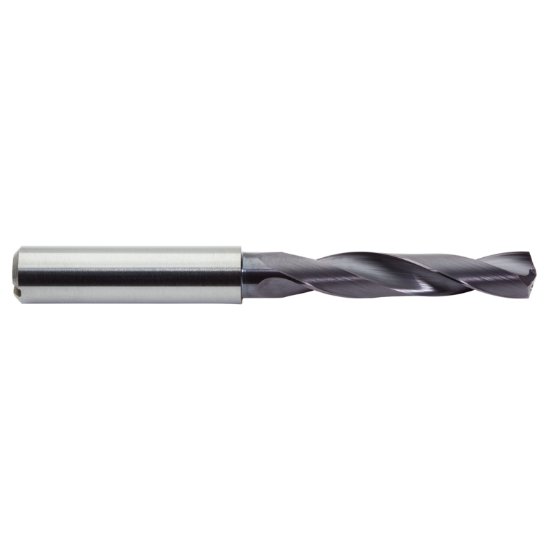

Picture of M.A. Ford 2XDCS1250A Carbide Drill Coolant Thru Carbide 140° - 142° 0.125 Dia 0.125 Shank 2.250 OAL 2 Flute 0.750 Flute Length Carbide AlTiN

M.A. Ford 2XDCS1250A Carbide Drill Coolant Thru Carbide 140° - 142° 0.125 Dia 0.125 Shank 2.250 OAL 2 Flute 0.750 Flute Length Carbide AlTiN

Part Number: MAF04406 ISO: 2XDCS1250A
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1116530
Vendor: Sussex Tool and Supply
$99.75

Description

M.A. FORD 2XDCS1250A 1/8 3X COOLANT DRILL Carbide AlTiN Twister XD® 3.0XD Flute 0.7500 19.05MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 2.2500 57.15MM
Shank/Pilot Dia 0.1250 3.17MM - 1/8
Flutes/Inserts 2
Tool Dia 0.1250 3.18MM - 1/8
Flute Length 0.7500 19.05MM
Dia Deep 3.0x Dia
Geometry & Angles
Included Angle 140° - 142°
Performance & Capacity
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Cut Dia Min 0.1250 3.18MM - 1/8
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
