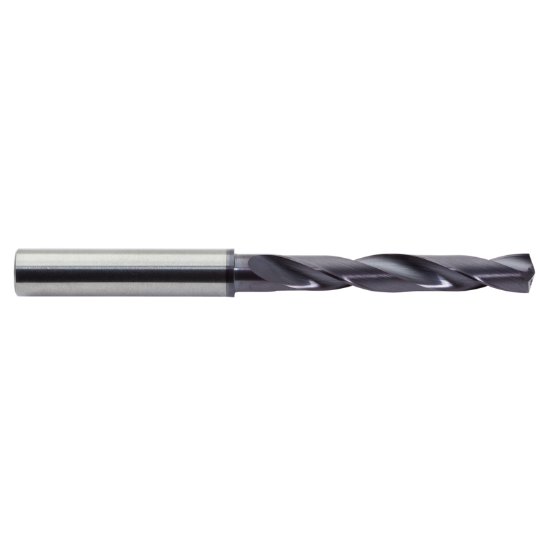

Picture of M.A. Ford 2XDCR7500AW Deep Hole Over 8Xd Coolant Thru Carbide 140° 0.750 Dia 0.750 Shank 6.300 OAL 2 Flute 3.940 Flute Length Carbide AlTiN

M.A. Ford 2XDCR7500AW Deep Hole Over 8Xd Coolant Thru Carbide 140° 0.750 Dia 0.750 Shank 6.300 OAL 2 Flute 3.940 Flute Length Carbide AlTiN

Part Number: MAF12797 ISO: 2XDCR7500AW
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1116521
Vendor: Sussex Tool and Supply
$726.13

Description

M.A. FORD 2XDCR7500AW 2XDCR7500A Weldon FLAT Carbide AlTiN Twister XD® 5.0XD Flute 3.9400 100.08MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 6.3000 160.02MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Dia 0.7500 19.05MM - 3/4
Flute Length 3.9400 100.08MM
Dia Deep 5.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Cut Dia Min 0.7500 19.05MM - 3/4
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
