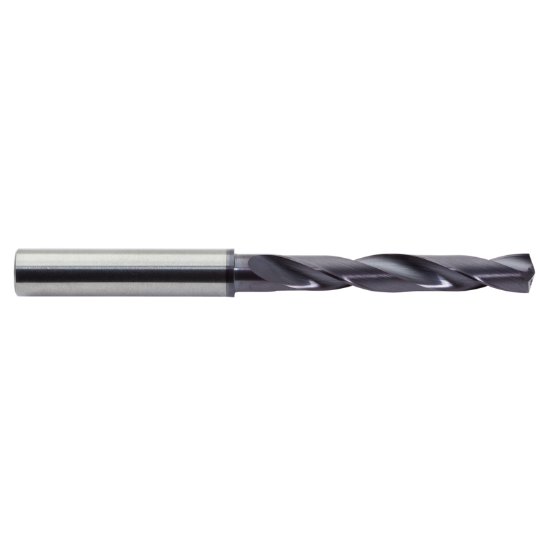

Picture of M.A. Ford 2XDCR7283A Deep Hole Over 8Xd Coolant Thru Carbide 140° - 142° 0.728 Dia 0.787 Shank 6.299 OAL 2 Flute 3.937 Flute Length Carbide AlTiN

M.A. Ford 2XDCR7283A Deep Hole Over 8Xd Coolant Thru Carbide 140° - 142° 0.728 Dia 0.787 Shank 6.299 OAL 2 Flute 3.937 Flute Length Carbide AlTiN

Part Number: MAF02816 ISO: 2XDCR7283A
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1116519
Vendor: Sussex Tool and Supply
$716.47

Description

M.A. FORD 2XDCR7283A DRILL 18.5MM COOLTHRU RE Carbide AlTiN Twister XD® 5.0XD Flute 3.9370 100.00MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 6.2992 160.00MM
Shank/Pilot Dia 0.7874 20.00MM
Flutes/Inserts 2
Tool Dia 0.7283 18.50MM
Flute Length 3.9370 100.00MM
Dia Deep 5.0x Dia
Geometry & Angles
Included Angle 140° - 142°
Performance & Capacity
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Cut Dia Min 0.7283 18.50MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
