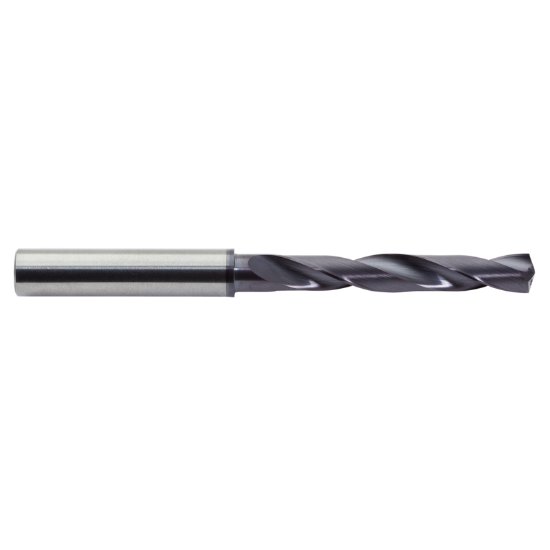

Picture of M.A. Ford 2XDCR4331T Deep Hole Over 8Xd Coolant Thru Carbide 140° 0.433 Dia 0.472 Shank 4.724 OAL 2 Flute 2.362 Flute Length Carbide TiN

M.A. Ford 2XDCR4331T Deep Hole Over 8Xd Coolant Thru Carbide 140° 0.433 Dia 0.472 Shank 4.724 OAL 2 Flute 2.362 Flute Length Carbide TiN

Part Number: MAF75944 ISO: 2XDCR4331T
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1116460
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

M.A. FORD 2XDCR4331T TIN 11.0MM COOL REG Carbide TiN Twister XD® 5.0XD Flute 2.3620 59.99MM Carbide Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.7244 120.00MM
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 2
Tool Dia 0.4331 11.00MM
Flute Length 2.3620 59.99MM
Dia Deep 5.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Cut Dia Min 0.4331 11.00MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TIN
