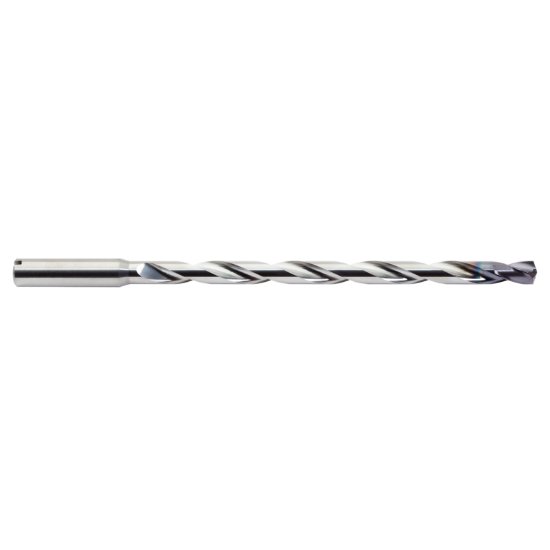

Picture of M.A. Ford 2XDCE5000A Deep Hole Over 8Xd Coolant Thru Carbide 140° - 142° 0.500 Dia 0.551 Shank 9.055 OAL 2 Flute 7.087 Flute Length Carbide AlTiN

M.A. Ford 2XDCE5000A Deep Hole Over 8Xd Coolant Thru Carbide 140° - 142° 0.500 Dia 0.551 Shank 9.055 OAL 2 Flute 7.087 Flute Length Carbide AlTiN

Part Number: MAF04394 ISO: 2XDCE5000A
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1116190
Vendor: Sussex Tool and Supply
$688.47

Description

M.A. FORD 2XDCE5000A 1/2 12.70MM XD DEEP HOLE Carbide AlTiN Twister XD® 14.0XD Flute 7.0870 180.01MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 9.0551 230.00MM
Shank/Pilot Dia 0.5512 14.00MM
Flutes/Inserts 2
Tool Dia 0.5000 12.70MM - 1/2
Flute Length 7.0870 180.01MM
Dia Deep 14.0x Dia
Geometry & Angles
Included Angle 140° - 142°
Performance & Capacity
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Cut Dia Min 0.5000 12.70MM - 1/2
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
