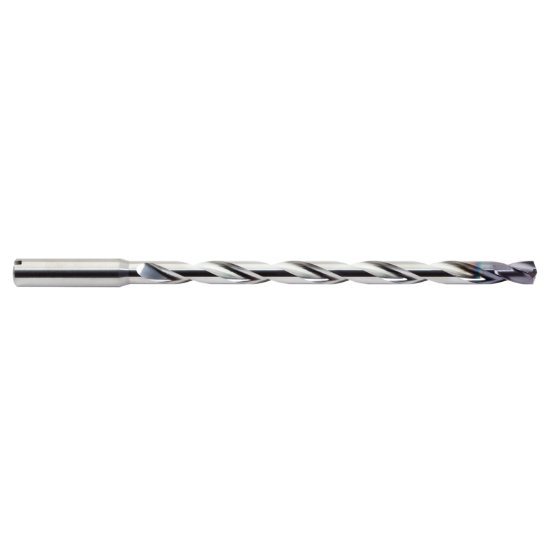

Picture of M.A. Ford 2XDCE4055A Deep Hole Over 8Xd Coolant Thru Carbide 140° - 142° 0.405 Dia 0.472 Shank 8.267 OAL 2 Flute 6.299 Flute Length Carbide AlTiN

M.A. Ford 2XDCE4055A Deep Hole Over 8Xd Coolant Thru Carbide 140° - 142° 0.405 Dia 0.472 Shank 8.267 OAL 2 Flute 6.299 Flute Length Carbide AlTiN

Part Number: MAF04378 ISO: 2XDCE4055A
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1116182
Vendor: Sussex Tool and Supply
$688.47

Description

M.A. FORD 2XDCE4055A 10.30MM XD DEEP HOLE DRL Carbide AlTiN Twister XD® 15.0XD Flute 6.2990 159.99MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 8.2677 210.00MM
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 2
Tool Dia 0.4055 10.30MM
Flute Length 6.2990 159.99MM
Dia Deep 15.0x Dia
Geometry & Angles
Included Angle 140° - 142°
Performance & Capacity
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Cut Dia Min 0.4055 10.30MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
