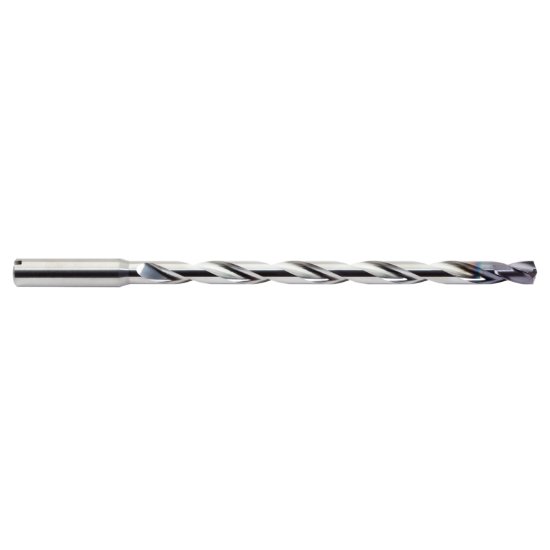

Picture of M.A. Ford 2XDCE3425A Deep Hole Over 8Xd Coolant Thru Carbide 140° - 142° 0.342 Dia 0.393 Shank 7.086 OAL 2 Flute 5.315 Flute Length Carbide AlTiN

M.A. Ford 2XDCE3425A Deep Hole Over 8Xd Coolant Thru Carbide 140° - 142° 0.342 Dia 0.393 Shank 7.086 OAL 2 Flute 5.315 Flute Length Carbide AlTiN

Part Number: MAF04366 ISO: 2XDCE3425A
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1116176
Vendor: Sussex Tool and Supply
$760.80

Description

M.A. FORD 2XDCE3425A 8.70MM XD DEEP HOLE DRL Carbide AlTiN Twister XD® 15.0XD Flute 5.3150 135.00MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 7.0866 180.00MM
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 2
Tool Dia 0.3425 8.70MM
Flute Length 5.3150 135.00MM
Dia Deep 15.0x Dia
Geometry & Angles
Included Angle 140° - 142°
Performance & Capacity
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Cut Dia Min 0.3425 8.70MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
