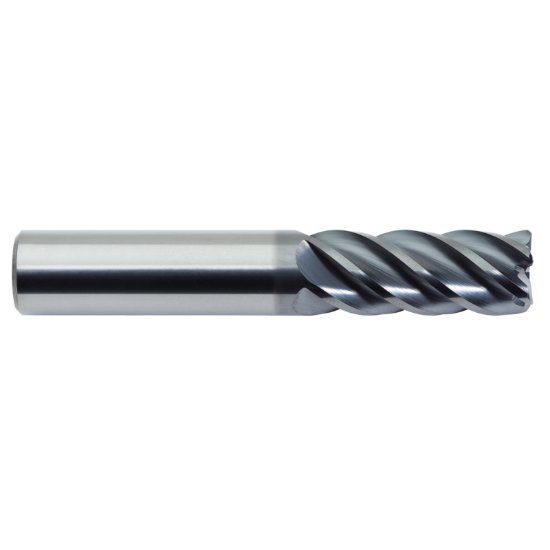

Picture of M.A. Ford 278L50004Bw Dia 1/2 Sh 0.50 Loc 2.00 Oal4.00 End Mill Standard Flute Standard Helix Carbide Altin Single End Corner Radius0.0300 0.76mm Tuffcut® Xt

M.A. Ford 278L50004Bw Dia 1/2 Sh 0.50 Loc 2.00 Oal4.00 End Mill Standard Flute Standard Helix Carbide Altin Single End Corner Radius0.0300 0.76mm Tuffcut® Xt

Part Number: MAF13593

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1002716
Vendor: Sussex Tool and Supply
$171.50

M.A. FORD carbide end mill has standard helix flute and 0.030 corner radius. AlTiN coated with Weldon 0.5000 connection. Made in USA. Tool post connection is WELDON0.5000.

Key Details

Materials & Finish

  • Coating: AlTiN
  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Weldon
  • Machine Side (Toolpost): WELDON0.5000

Grades & Coatings

  • Alternate Description: M.A. FORD 278L50004BW Standard Helix End Mill Carbide AlTiN Corner Radius 0.0300 0.76MM Standard Flute Flutes 5 Single End TuffCut® XT

Other Details

  • Brand: M.A. FORD
  • Shipping State: IOWA
  • Made In Usa: Yes

Technical Overview

What It Does

Cuts material with standard helix and flute. Performs single end corner radius cutting. Suitable for standard machining operations.

Composition

Carbide tool material with AlTiN coating. Weldon connection type 0.5000. Diameter 0.5000 inches.

Typical Uses

Used in machine tool operations with Weldon toolpost. Ideal for cutting with standard flute and helix. Applied in standard end milling tasks.

Products specifications
Attribute name Attribute value
Shipping State IOWA
Cutter Type Solid End Mill
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) WELDON0.5000
Machine Side (Toolpost) Connection Type Weldon
Overall Length 4.0000 101.60MM
Shank Or Pilot Diameter 0.5000 12.70MM - 1/2
Family Group TuffCut® XT
Coolant Thru Non Coolant
Coating AlTiN
Mach Side Connection Size 0.5000 12.70MM - 1/2
Tool Diameter 0.5000 12.70MM - 1/2
Flutes Or Inserts 5
Length Type Long
Performance Rating High Performance
Length Of Cut 2.0000 50.80MM
End Of Tool Shape Corner Radius
Cutter Style Carbide Bull Nose Finisher
Single Or Double End Single End
Corner Radius 0.0300 0.76MM
Inch Or Metric Inch
Helix Angle 40°
Center Cutting Center Cutting
