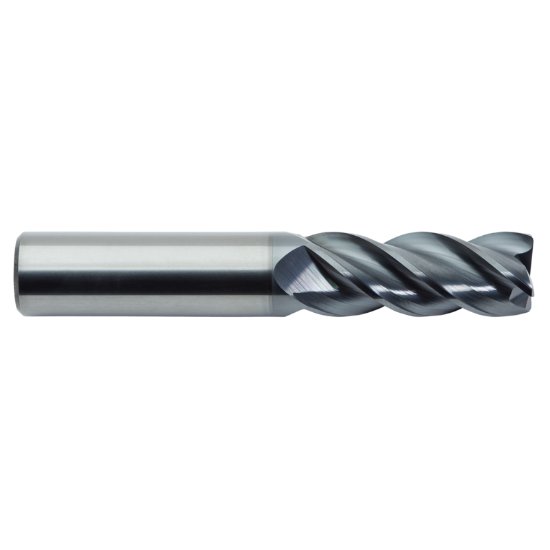

Picture of M.A. Ford 277X1006B Dia 1 Sh 1.00 Loc 3.00 Oal6.00 End Mill Standard Flute Variable Helix Carbide Altin Single End Corner Radius0.0600 1.52mm Tuffcut® Xt

M.A. Ford 277X1006B Dia 1 Sh 1.00 Loc 3.00 Oal6.00 End Mill Standard Flute Variable Helix Carbide Altin Single End Corner Radius0.0600 1.52mm Tuffcut® Xt

Part Number: MAF18874

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1003197
Vendor: Sussex Tool and Supply
$693.69

M.A. FORD carbide end mill has variable helix standard flute corner radius 0.0600 1.52mm. AlTiN coating provides cylindrical machine post connection. Made in USA with cylindrical toolpost connection.

Key Details

Materials & Finish

  • Coating: AlTiN
  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL1.0000

Grades & Coatings

  • Alternate Description: M.A. FORD 277X1006B Variable Helix End Mill Carbide AlTiN Corner Radius 0.0600 1.52MM Standard Flute Flutes 4 Single End TuffCut® XT

Other Details

  • Brand: M.A. FORD
  • Shipping State: IOWA
  • Made In Usa: Yes

Technical Overview

What It Does

Cuts material with standard flute and variable helix design. Performs corner radius cutting with 0.0600 radius. Suitable for end milling operations.

Composition

Carbide tool material with AlTiN coating. Cylindrical connection with 1.0000 diameter. Made in USA.

Typical Uses

Used in end milling with standard flute. Applied in corner radius cutting. Operates on machine with cylindrical toolpost.

Products specifications
Attribute name Attribute value
Shipping State IOWA
Cutter Type Solid End Mill
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) CYLINDRICAL1.0000
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 6.0000 152.40MM
Shank Or Pilot Diameter 1.0000 25.40MM
Family Group TuffCut® XT
Coolant Thru Non Coolant
Coating AlTiN
Mach Side Connection Size 1.0000 25.40MM
Tool Diameter 1.0000 25.40MM
Flutes Or Inserts 4
Length Type Long
Performance Rating High Performance
Length Of Cut 3.0000 76.20MM
End Of Tool Shape Corner Radius
Cutter Style Carbide Bull Nose Finisher
Single Or Double End Single End
Corner Radius 0.0600 1.52MM
Inch Or Metric Inch
Helix Angle Variable
Center Cutting Center Cutting
