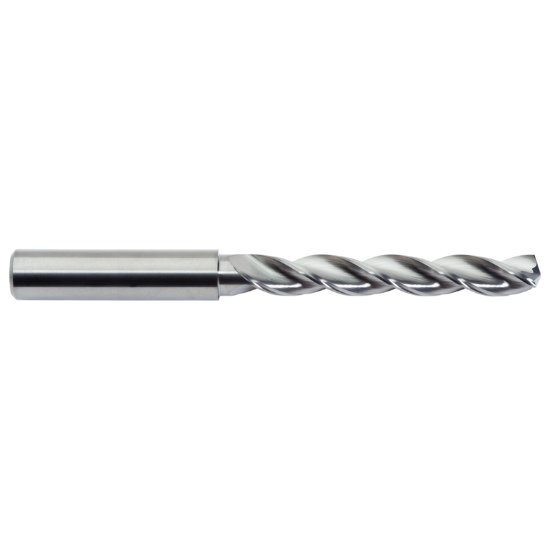

Picture of M.A. Ford 22914170C Carbide Drill Solid Carbide 144° 0.141 Dia 0.236 Shank 2.598 OAL 3 Flute 1.102 Flute Length Carbide TiCN

M.A. Ford 22914170C Carbide Drill Solid Carbide 144° 0.141 Dia 0.236 Shank 2.598 OAL 3 Flute 1.102 Flute Length Carbide TiCN

Part Number: MAF77604 ISO: 22914170C
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1116861
Vendor: Sussex Tool and Supply
$66.19

Description

M.A. FORD 22914170C 3.6MM TICN 3 FLUTE DRL Carbide TiCN Twister® AL 5.0XD Flute 1.1020 27.99MM Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 2.5984 66.00MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 3
Tool Dia 0.1417 3.60MM
Flute Length 1.1020 27.99MM
Dia Deep 5.0x Dia
Performance & Capacity
Cut Rating Aluminum, Brass, Copper, Plastic
Cut Dia Min 0.1417 3.60MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TICN
