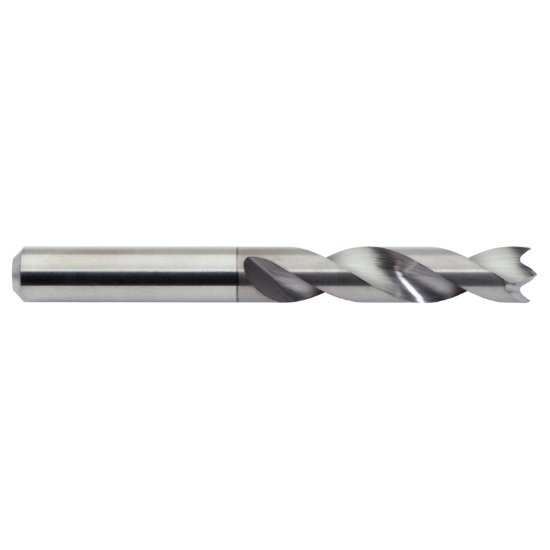

Picture of M.A. Ford 20725000CE Carbide Drill Solid Carbide Spur 0.250 Dia 0.250 Shank 2.500 OAL 2 Flute 1.250 Flute Length Carbide CERAedge®

M.A. Ford 20725000CE Carbide Drill Solid Carbide Spur 0.250 Dia 0.250 Shank 2.500 OAL 2 Flute 1.250 Flute Length Carbide CERAedge®

Part Number: MAF27287 ISO: 20725000CE
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$95.20
SKU: 1115650

Description

M.A. FORD 20725000CE 1/4 & E SPUR PT CERAEDGE Carbide CERAedge® Twister® HP Flute 1.2500 31.75MM Carbide CERAedge™ is a new coating introduced by MA Ford a while back that is starting to show some tremendous performance improvements when compared to amorphous diamond coatings.  It combines the heat resistance of conventional AlTiN coating with the hardness and smoothness of amorphous diamond coatings.
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Spur Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Drill Length Type Standard
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 2
Tool Dia 0.2500 6.35MM - 1/4 - E
Flute Length 1.2500 31.75MM
Performance & Capacity
Cut Rating Graphite
Cut Dia Min 0.2500 6.35MM - 1/4 - E
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating CERAedge®
