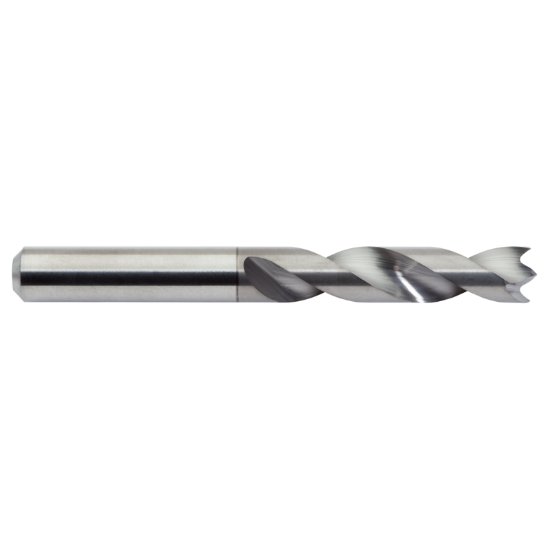

Picture of M.A. Ford 20721300CE Carbide Drill Solid Carbide Spur 0.213 Dia 0.213 Shank 2.375 OAL 2 Flute 1.063 Flute Length Carbide CERAedge®

M.A. Ford 20721300CE Carbide Drill Solid Carbide Spur 0.213 Dia 0.213 Shank 2.375 OAL 2 Flute 1.063 Flute Length Carbide CERAedge®

Part Number: MAF27233 ISO: 20721300CE
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$87.92
SKU: 1115627

Description

M.A. FORD 20721300CE NO 3 SPUR PT CERAEDGE Carbide CERAedge® Twister® HP Flute 1.0630 27.00MM Carbide CERAedge™ is a new coating introduced by MA Ford a while back that is starting to show some tremendous performance improvements when compared to amorphous diamond coatings.  It combines the heat resistance of conventional AlTiN coating with the hardness and smoothness of amorphous diamond coatings.
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Spur Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Drill Length Type Standard
Dimensions & Sizing
Overall Length 2.3750 60.33MM
Shank/Pilot Dia 0.2130 5.41MM - #3
Flutes/Inserts 2
Tool Dia 0.2130 5.41MM - #3
Flute Length 1.0630 27.00MM
Performance & Capacity
Cut Rating Graphite
Cut Dia Min 0.2130 5.41MM - #3
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating CERAedge®
