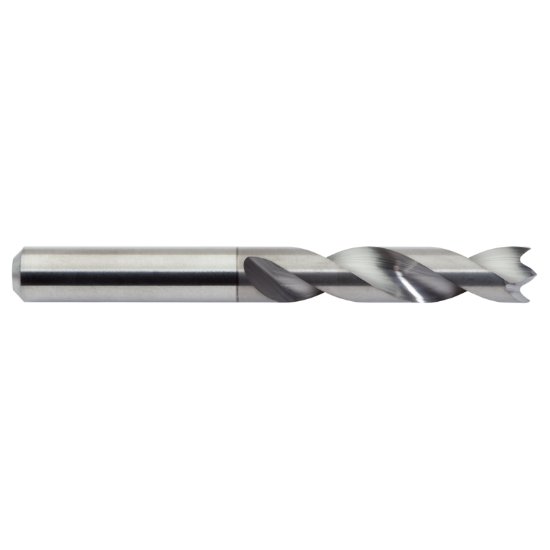

Picture of M.A. Ford 20719100CE Carbide Drill Solid Carbide Spur 0.191 Dia 0.191 Shank 2.250 OAL 2 Flute 1.000 Flute Length Carbide CERAedge®

M.A. Ford 20719100CE Carbide Drill Solid Carbide Spur 0.191 Dia 0.191 Shank 2.250 OAL 2 Flute 1.000 Flute Length Carbide CERAedge®

Part Number: MAF27188 ISO: 20719100CE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1115605
Vendor: Sussex Tool and Supply
$52.47
M.A. FORD 20719100CE NO 11 SPUR PT CERAEDGE Carbide CERAedge® Twister® HP Flute 1.0000 25.40MM Carbide CERAedge™ is a new coating introduced by MA Ford a while back that is starting to show some tremendous performance improvements when compared to amorphous diamond coatings.  It combines the heat resistance of conventional AlTiN coating with the hardness and smoothness of amorphous diamond coatings.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Spur Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite
Coating CERAedge®
Mach Side Connection Size 0.1910 4.85MM
Overall Length 2.2500 57.15MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1910 4.85MM - #11
Flutes/Inserts 2
Tool Dia 0.1910 4.85MM - #11
Type Of Tool Drill
Flute Length 1.0000 25.40MM
Cut Dia Min 0.1910 4.85MM - #11
Drill Length Type Standard
