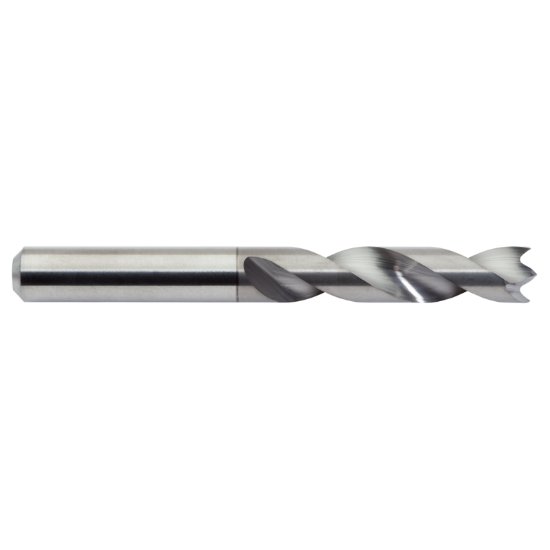

Picture of M.A. Ford 20714060CE Carbide Drill Solid Carbide Spur 0.140 Dia 0.140 Shank 1.937 OAL 2 Flute 0.688 Flute Length Carbide CERAedge®

M.A. Ford 20714060CE Carbide Drill Solid Carbide Spur 0.140 Dia 0.140 Shank 1.937 OAL 2 Flute 0.688 Flute Length Carbide CERAedge®

Part Number: MAF77418 ISO: 20714060CE
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1115564
Vendor: Sussex Tool and Supply
$54.83

Description

M.A. FORD 20714060CE 9/64 SPUR POINT CERAEDGE Carbide CERAedge® Twister® GP Flute 0.6880 17.48MM Carbide CERAedge™ is a new coating introduced by MA Ford a while back that is starting to show some tremendous performance improvements when compared to amorphous diamond coatings.  It combines the heat resistance of conventional AlTiN coating with the hardness and smoothness of amorphous diamond coatings.
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Spur Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Drill Length Type Standard
Dimensions & Sizing
Overall Length 1.9375 49.21MM
Shank/Pilot Dia 0.1406 3.57MM - 9/64 - #28
Flutes/Inserts 2
Tool Dia 0.1406 3.57MM - 9/64 - #28
Flute Length 0.6880 17.48MM
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Cut Dia Min 0.1406 3.57MM - 9/64 - #28
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating CERAedge®
