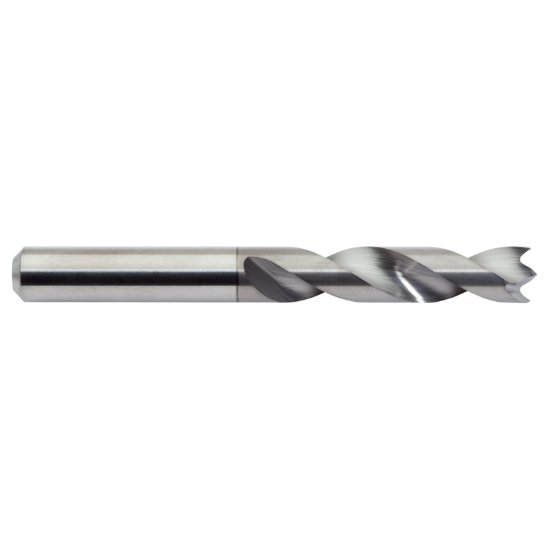

Picture of M.A. Ford 20712990CE Carbide Drill Solid Carbide Spur 0.129 Dia 0.129 Shank 1.929 OAL 2 Flute 0.689 Flute Length Carbide CERAedge®

M.A. Ford 20712990CE Carbide Drill Solid Carbide Spur 0.129 Dia 0.129 Shank 1.929 OAL 2 Flute 0.689 Flute Length Carbide CERAedge®

Part Number: MAF27077 ISO: 20712990CE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1115556
Vendor: Sussex Tool and Supply
$33.60
M.A. FORD 20712990CE 3.30MM SPUR PT CERAEDGE Carbide CERAedge® Twister® HP Flute 0.6890 17.50MM Carbide CERAedge™ is a new coating introduced by MA Ford a while back that is starting to show some tremendous performance improvements when compared to amorphous diamond coatings.  It combines the heat resistance of conventional AlTiN coating with the hardness and smoothness of amorphous diamond coatings.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Spur Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite
Coating CERAedge®
Mach Side Connection Size 0.1299 3.30MM
Overall Length 1.9291 49.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1299 3.30MM
Flutes/Inserts 2
Tool Dia 0.1299 3.30MM
Type Of Tool Drill
Flute Length 0.6890 17.50MM
Cut Dia Min 0.1299 3.30MM
Drill Length Type Standard
