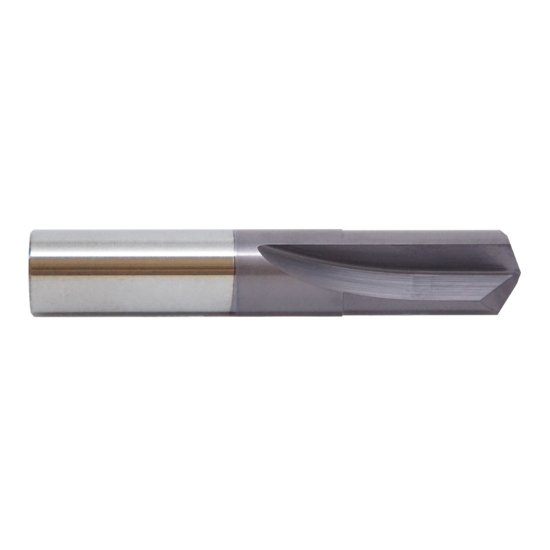

Picture of M.A. Ford 200S62500A Spot Drill Solid Carbide 145° 0.625 Dia 0.625 Shank 3.500 OAL 2 Flute 1.250 Flute Length Carbide AlTiN

M.A. Ford 200S62500A Spot Drill Solid Carbide 145° 0.625 Dia 0.625 Shank 3.500 OAL 2 Flute 1.250 Flute Length Carbide AlTiN

Part Number: MAF20782 ISO: 200S62500A
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1114891
Vendor: Sussex Tool and Supply
$276.72

Description

M.A. FORD 200S62500A 5/8 145 DEG SPOT DRILL Carbide AlTiN Twister® Flute 1.2500 31.75MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Spot Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Drill Length Type Standard
Dimensions & Sizing
Overall Length 3.5000 88.90MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Tool Dia 0.6250 15.88MM - 5/8
Flute Length 1.2500 31.75MM
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Cut Dia Min 0.6250 15.88MM - 5/8
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
