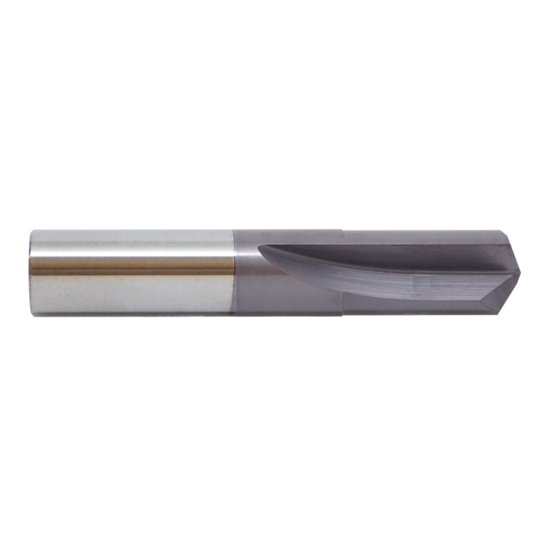

Picture of M.A. Ford 200S50000A Spot Drill Solid Carbide 145° 0.500 Dia 0.500 Shank 3.000 OAL 2 Flute 1.000 Flute Length Carbide AlTiN

M.A. Ford 200S50000A Spot Drill Solid Carbide 145° 0.500 Dia 0.500 Shank 3.000 OAL 2 Flute 1.000 Flute Length Carbide AlTiN

Part Number: MAF20740 ISO: 200S50000A
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1114890
Vendor: Sussex Tool and Supply
$174.00

Description

M.A. FORD 200S50000A 1/2 145 DEG SPOT DRILL Carbide AlTiN Twister® Flute 1.0000 25.40MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Spot Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Drill Length Type Standard
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Tool Dia 0.5000 12.70MM - 1/2
Flute Length 1.0000 25.40MM
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Cut Dia Min 0.5000 12.70MM - 1/2
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
