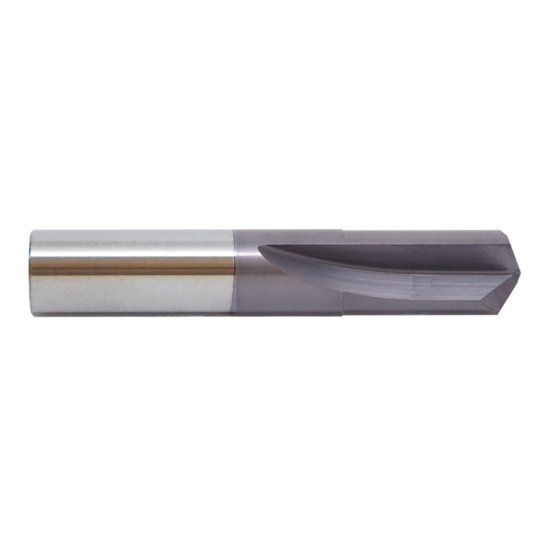

Picture of M.A. Ford 200S47240A Spot Drill Solid Carbide 145° 0.472 Dia 0.472 Shank 2.992 OAL 2 Flute 0.984 Flute Length Carbide AlTiN

M.A. Ford 200S47240A Spot Drill Solid Carbide 145° 0.472 Dia 0.472 Shank 2.992 OAL 2 Flute 0.984 Flute Length Carbide AlTiN

Part Number: MAF20731 ISO: 200S47240A
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1114889
Vendor: Sussex Tool and Supply
$176.69

Description

M.A. FORD 200S47240A 12.0MM 145 DEG SPOT DRIL Carbide AlTiN Twister® Flute 0.9840 24.99MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Spot Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Drill Length Type Standard
Dimensions & Sizing
Overall Length 2.9921 76.00MM
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 2
Tool Dia 0.4724 12.00MM
Flute Length 0.9840 24.99MM
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Cut Dia Min 0.4724 12.00MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
