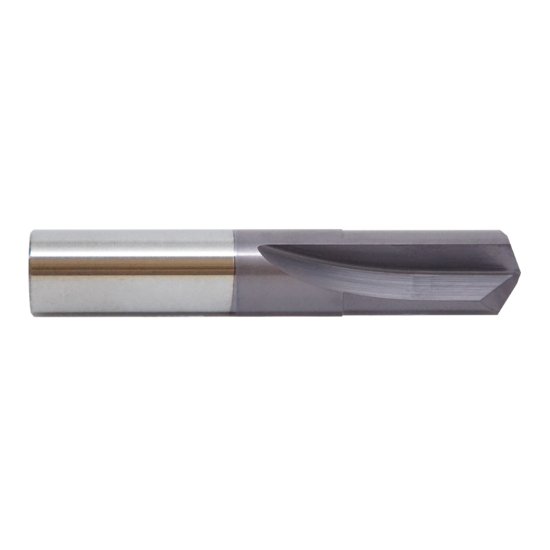

Picture of M.A. Ford 200S39370A Spot Drill Solid Carbide 145° 0.393 Dia 0.393 Shank 2.755 OAL 2 Flute 0.984 Flute Length Carbide AlTiN

M.A. Ford 200S39370A Spot Drill Solid Carbide 145° 0.393 Dia 0.393 Shank 2.755 OAL 2 Flute 0.984 Flute Length Carbide AlTiN

Part Number: MAF20647 ISO: 200S39370A
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1114888
Vendor: Sussex Tool and Supply
$136.45

Description

M.A. FORD 200S39370A 10.0MM 145 DEG SPOT DRIL Carbide AlTiN Twister® Flute 0.9840 24.99MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Spot Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Drill Length Type Standard
Dimensions & Sizing
Overall Length 2.7560 70.00MM
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 2
Tool Dia 0.3937 10.00MM
Flute Length 0.9840 24.99MM
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Cut Dia Min 0.3937 10.00MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
