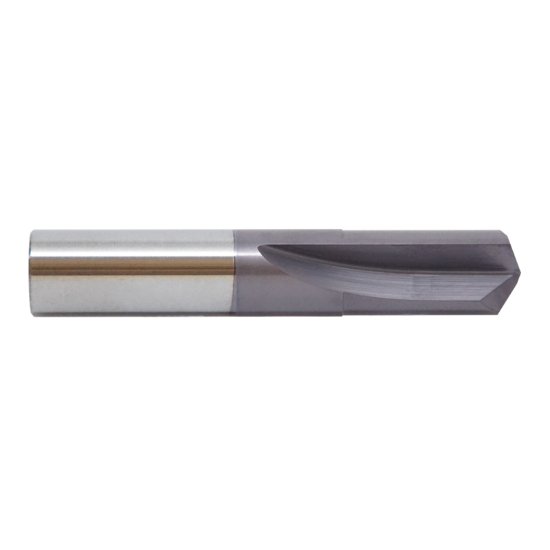

Picture of M.A. Ford 200S31500A Spot Drill Solid Carbide 145° 0.315 Dia 0.315 Shank 2.519 OAL 2 Flute 0.748 Flute Length Carbide AlTiN

M.A. Ford 200S31500A Spot Drill Solid Carbide 145° 0.315 Dia 0.315 Shank 2.519 OAL 2 Flute 0.748 Flute Length Carbide AlTiN

Part Number: MAF20545 ISO: 200S31500A
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1114886
Vendor: Sussex Tool and Supply
$86.59

Description

M.A. FORD 200S31500A 8.0MM 145 DEG SPOT DRILL Carbide AlTiN Twister® Flute 0.7480 19.00MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Spot Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Drill Length Type Standard
Dimensions & Sizing
Overall Length 2.5197 64.00MM
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 2
Tool Dia 0.3150 8.00MM
Flute Length 0.7480 19.00MM
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Cut Dia Min 0.3150 8.00MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
