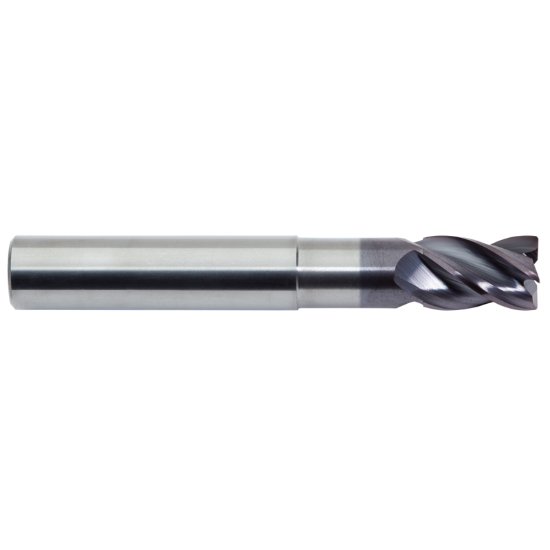

Picture of M.A. Ford 177S1969R008AW Dia 5mm SH 0.2362 LOC 0.3150 OAL2.2441 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius0.2000 5.08mm TuffCut® XR

M.A. Ford 177S1969R008AW Dia 5mm SH 0.2362 LOC 0.3150 OAL2.2441 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius0.2000 5.08mm TuffCut® XR

Part Number: MAF18240 0.197 x 0.236 x 0.315 x 2.244

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1242693
Vendor: Sussex Tool and Supply
$36.10
M.A. FORD 177S1969R008AW Variable Helix End Mill Carbide AlTiN Corner Radius 0.2000 5.08MM Standard Flute Flutes 4 Single End TuffCut® XR Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Titanium, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Coating ALTIN
Mach Side Connection Size 0.2362 6.00MM
Overall Length 2.2441 57.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 4
Tool Dia 0.1969 5.00MM
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.3150 8.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.2000 5.08MM
Inch/Metric Metric
Helix Angle Variable
Center Cutting Center Cutting
Neck Length 0.6693 17.00MM
