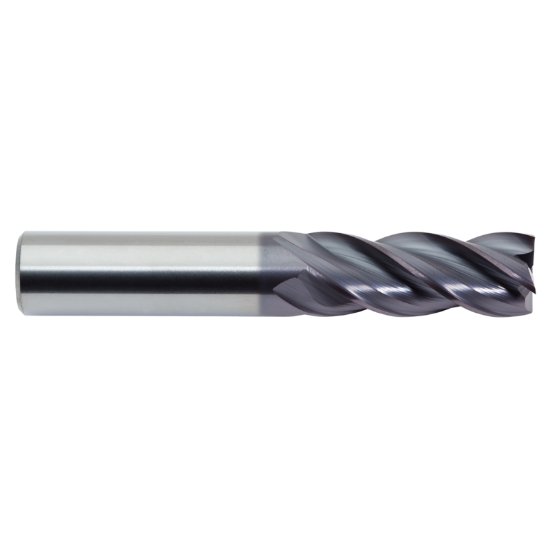

Picture of M.A. Ford 17775014A Dia 3/4 Sh 0.7500 Loc 1.50 Oal4.00 End Mill Standard Flute Variable Helix Carbide Altin Single End Corner Radius0.0300 0.76mm Tuffcut® Xr

M.A. Ford 17775014A Dia 3/4 Sh 0.7500 Loc 1.50 Oal4.00 End Mill Standard Flute Variable Helix Carbide Altin Single End Corner Radius0.0300 0.76mm Tuffcut® Xr

Part Number: MAF17777

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1002418
Vendor: Sussex Tool and Supply
$314.80

Carbide end mill with AlTiN coating. Variable helix standard flute single end corner radius 0.030 0.76mm. Cylindrical machine post connection. Made in USA.

Key Details

Materials & Finish

  • Coating: AlTiN
  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.7500

Grades & Coatings

  • Alternate Description: M.A. FORD 17775014A Variable Helix End Mill Carbide AlTiN Corner Radius 0.0300 0.76MM Standard Flute Flutes 4 Single End TuffCut® XR

Other Details

  • Brand: M.A. FORD
  • Shipping State: IOWA
  • Made In Usa: Yes

Technical Overview

What It Does

Cuts material with standard flute design. Features variable helix for smooth cutting. Operates with corner radius 0.0300 0.76mm.

Composition

Carbide tool material. AlTiN coating. Cylindrical connection 0.7500.

Typical Uses

Used in machine toolpost with cylindrical mount. Suitable for end milling operations. Applied in standard flute cutting tasks.

Products specifications
Attribute name Attribute value
Shipping State IOWA
Cutter Type Solid End Mill
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) CYLINDRICAL0.7500
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 4.0000 101.60MM
Shank Or Pilot Diameter 0.7500 19.05MM - 3/4
Family Group TuffCut® XR
Coolant Thru Non Coolant
Coating AlTiN
Mach Side Connection Size 0.7500 19.05MM - 3/4
Tool Diameter 0.7500 19.05MM - 3/4
Flutes Or Inserts 4
Length Type Standard
Performance Rating High Performance
Length Of Cut 1.5000 38.10MM
End Of Tool Shape Corner Radius
Cutter Style Carbide Bull Nose Finisher
Single Or Double End Single End
Corner Radius 0.0300 0.76MM
Inch Or Metric Inch
Helix Angle Variable
Center Cutting Center Cutting
