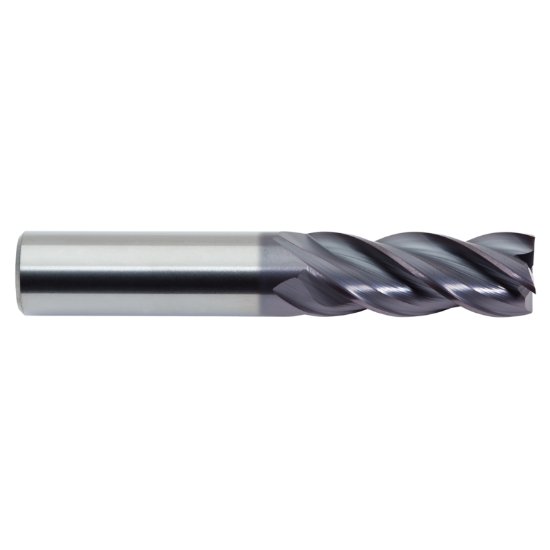

Picture of M.A. Ford 17715602A Dia 5/32 Sh 0.1875 Loc 0.1875 Oal2.00 End Mill Standard Flute Variable Helix Carbide Altin Single End Corner Radius0.0150 0.38mm Tuffcut® Xr

M.A. Ford 17715602A Dia 5/32 Sh 0.1875 Loc 0.1875 Oal2.00 End Mill Standard Flute Variable Helix Carbide Altin Single End Corner Radius0.0150 0.38mm Tuffcut® Xr

Part Number: MAF17731

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1002633
Vendor: Sussex Tool and Supply
$33.04

M.A. FORD carbide end mill with variable helix standard flute corner radius 0.0150 altiN coating cylindrical 0.1875 machine post connection made in usa.

Key Details

Materials & Finish

  • Coating: AlTiN
  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.1875

Grades & Coatings

  • Alternate Description: M.A. FORD 17715602A Variable Helix End Mill Carbide AlTiN Corner Radius 0.0150 0.38MM Standard Flute Flutes 4 Single End TuffCut® XR

Other Details

  • Brand: M.A. FORD
  • Shipping State: IOWA
  • Made In Usa: Yes

Technical Overview

What It Does

Cuts material with standard flute and variable helix design. Performs corner cutting with 0.0150 radius. Suitable for use in machine toolpost with cylindrical connection.

Composition

Carbide tool material with AlTiN coating. Cylindrical connection size 0.1875. Flute type standard, single end.

Typical Uses

Used in machining with 0.1875 location and 2.00 overall length. Fits in toolpost with cylindrical mount. Operates in standard flute end mill applications.

Products specifications
Attribute name Attribute value
Shipping State IOWA
Cutter Type Solid End Mill
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) CYLINDRICAL0.1875
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 2.0000 50.80MM
Shank Or Pilot Diameter 0.1875 4.76MM - 3/16
Family Group TuffCut® XR
Coolant Thru Non Coolant
Coating AlTiN
Mach Side Connection Size 0.1875 4.76MM - 3/16
Tool Diameter 0.1563 3.97MM - 5/32
Flutes Or Inserts 4
Length Type Standard
Performance Rating High Performance
Length Of Cut 0.1875 4.76MM
End Of Tool Shape Corner Radius
Cutter Style Carbide Bull Nose Finisher
Single Or Double End Single End
Corner Radius 0.0150 0.38MM
Inch Or Metric Inch
Helix Angle Variable
Center Cutting Center Cutting
