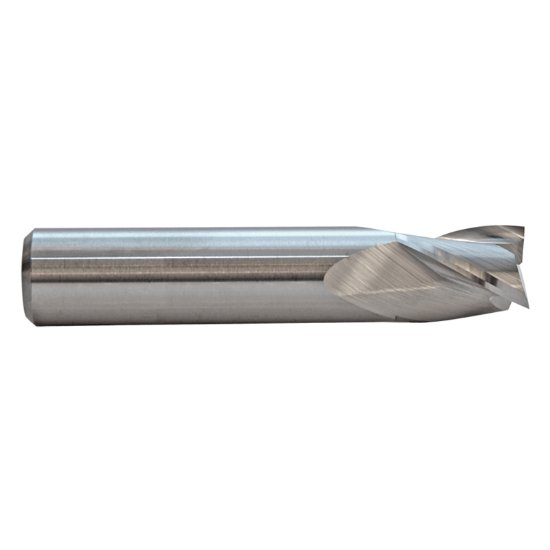

Picture of M.A. Ford 16918758C Dia 3/16 Sh 0.1875 Loc 0.3750 Oal2.00 End Mill Standard Flute Standard Helix Carbide Ticn Single End Corner Radius0.0100 0.25mm Tuffcut® Gp

M.A. Ford 16918758C Dia 3/16 Sh 0.1875 Loc 0.3750 Oal2.00 End Mill Standard Flute Standard Helix Carbide Ticn Single End Corner Radius0.0100 0.25mm Tuffcut® Gp

Part Number: MAF16980

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1003312
Vendor: Sussex Tool and Supply
$0.00

M.A. FORD 16918758C standard helix end mill, flute single, radius 0.25mm, tuffcut gp. Made in USA, shipping state IOWA. Cylindrical toolpost connection, cylindrical 0.1875. Tool material carbide, coating tiCN.

Key Details

Materials & Finish

  • Coating: TiCN
  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.1875

Grades & Coatings

  • Alternate Description: M.A. FORD 16918758C Standard Helix End Mill Carbide TiCN Corner Radius 0.0100 0.25MM Standard Flute Flutes 3 Single End TuffCut® GP

Other Details

  • Brand: M.A. FORD
  • Shipping State: IOWA
  • Made In Usa: Yes

Technical Overview

What It Does

Cuts material with standard helix and flute. Performs single end corner radius cutting. Suitable for standard toolpost operations.

Composition

Carbide tool material with TiCN coating. Cylindrical connection 0.1875. Corner radius 0.0100, 0.25mm.

Typical Uses

End milling operations. Cutting in machine with cylindrical toolpost. Used in standard flute applications.

Products specifications
Attribute name Attribute value
Shipping State IOWA
Cutter Type Solid End Mill
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) CYLINDRICAL0.1875
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 2.0000 50.80MM
Shank Or Pilot Diameter 0.1875 4.76MM - 3/16
Family Group TuffCut® GP
Coolant Thru Non Coolant
Coating TiCN
Mach Side Connection Size 0.1875 4.76MM - 3/16
Tool Diameter 0.1875 4.76MM - 3/16
Flutes Or Inserts 3
Length Type Standard
Performance Rating General Performance
Length Of Cut 0.3750 9.53MM
End Of Tool Shape Corner Radius
Cutter Style Carbide Bull Nose Finisher
Single Or Double End Single End
Corner Radius 0.0100 0.25MM
Inch Or Metric Inch
Helix Angle 30°
Center Cutting Center Cutting
