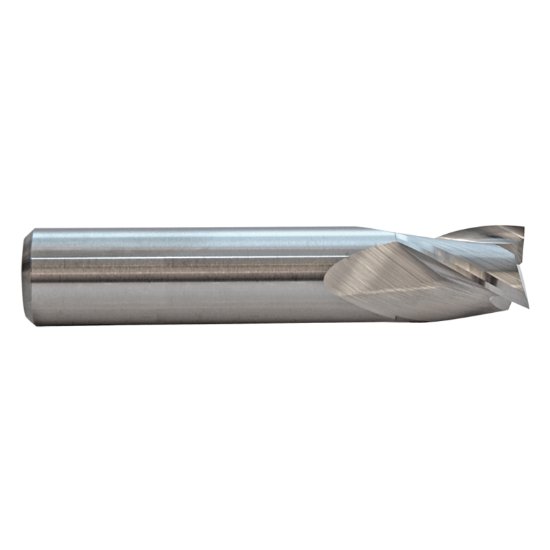

Picture of M.A. Ford 16907810R.020 Dia 5/64 Sh 0.1250 Loc 0.1562 Oal1.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0200 0.51mm

M.A. Ford 16907810R.020 Dia 5/64 Sh 0.1250 Loc 0.1562 Oal1.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0200 0.51mm

Part Number: MAF16920

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1003040
Vendor: Sussex Tool and Supply
$51.03

M.A. FORD carbide uncoated end mill with standard flute and helix. Cylindrical connection 0.1250 diameter, 0.1562 location, 1.50 overall. Corner radius 0.0200. Made in USA, shipping state IOWA.

Key Details

Materials & Finish

  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.1250

Grades & Coatings

  • Alternate Description: M.A. FORD 16907810R.020 Standard Helix End Mill Carbide Uncoated Corner Radius 0.0200 0.51MM Standard Flute Flutes 3 Single End M.A. FORD

Other Details

  • Brand: M.A. FORD
  • Shipping State: IOWA
  • Made In Usa: Yes

Technical Overview

What It Does

Cuts material with standard flute and helix. Performs single end corner radius cutting. Suitable for standard machine operations.

Composition

Carbide uncoated, cylindrical connection, 0.1250 diameter, 0.1562 location, 1.50 overall length.

Typical Uses

Used in machine tool operations with cylindrical toolpost. Fits standard helix end mill setups. Applies to cutting tasks with 0.0200 corner radius.

Products specifications
Attribute name Attribute value
Shipping State IOWA
Cutter Type Solid End Mill
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) CYLINDRICAL0.1250
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 1.5000 38.10MM- 1-1/2
Shank Or Pilot Diameter 0.1250 3.17MM - 1/8
Family Group M.A. Ford
Coolant Thru Non Coolant
Mach Side Connection Size 0.1250 3.18MM - 1/8
Tool Diameter 0.0781 1.98MM - 5/64
Flutes Or Inserts 3
Length Type Standard
Performance Rating General Performance
Length Of Cut 0.1563 3.97MM
End Of Tool Shape Corner Radius
Cutter Style Carbide Bull Nose Finisher
Single Or Double End Single End
Corner Radius 0.0200 0.51MM
Inch Or Metric Inch
Helix Angle 30°
Center Cutting Center Cutting
