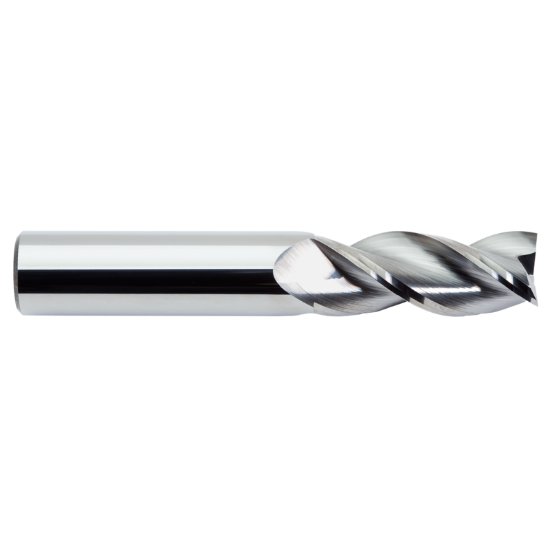

Picture of M.A. Ford 13862990R.020 Dia 16mm Sh 0.6299 Loc 1.2598 Oal3.5039 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0197 0.50mm Tuffcut® X-Al

M.A. Ford 13862990R.020 Dia 16mm Sh 0.6299 Loc 1.2598 Oal3.5039 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0197 0.50mm Tuffcut® X-Al

Part Number: MAF13127

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1003334
Vendor: Sussex Tool and Supply
$236.21

M.A. FORD carbide uncoated end mill with 0.50mm corner radius. Standard flute, three flutes, cylindrical connection. Made in USA, machine side connection type cylindrical 0.6299.

Key Details

Materials & Finish

  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.6299

Grades & Coatings

  • Alternate Description: M.A. FORD 13862990R.020 Standard Helix End Mill Carbide Uncoated Corner Radius 0.0197 0.50MM Standard Flute Flutes 3 Single End TuffCut® X-AL

Other Details

  • Brand: M.A. FORD
  • Shipping State: IOWA
  • Made In Usa: Yes

Technical Overview

What It Does

Cuts material with standard flute and helix. Performs corner cutting with 0.0197 radius. Suitable for standard end mill operations.

Composition

Carbide uncoated. Made in USA. Cylindrical connection 0.6299.

Typical Uses

Used in machine toolpost with cylindrical mount. Fits standard end mill applications. Operates with 16mm diameter and 3.5039 OAL.

Products specifications
Attribute name Attribute value
Shipping State IOWA
Cutter Type Solid End Mill
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) CYLINDRICAL0.6299
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 3.5039 89.00MM
Shank Or Pilot Diameter 0.6299 16.00MM
Family Group TuffCut® X-AL
Coolant Thru Non Coolant
Mach Side Connection Size 0.6299 16.00MM
Tool Diameter 0.6299 16.00MM
Flutes Or Inserts 3
Length Type Standard
Performance Rating High Performance
Length Of Cut 1.2600 32.00MM
End Of Tool Shape Corner Radius
Cutter Style Carbide Bull Nose Finisher
Single Or Double End Single End
Corner Radius 0.0197 0.50MM
Inch Or Metric Metric
Helix Angle 36°
Center Cutting Center Cutting
