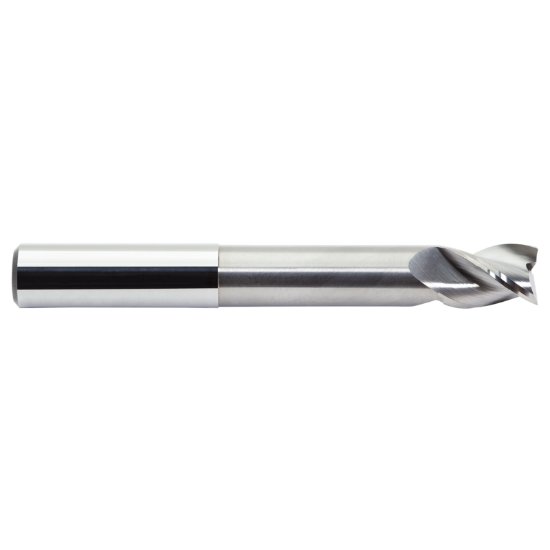

Picture of M.A. Ford 13862501Nr.090 Dia 5/8 Sh 0.6250 Loc 0.7500 Oal6.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0900 2.29mm Tuffcut® X-Al

M.A. Ford 13862501Nr.090 Dia 5/8 Sh 0.6250 Loc 0.7500 Oal6.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0900 2.29mm Tuffcut® X-Al

Part Number: MAF11904

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1003029
Vendor: Sussex Tool and Supply
$290.24

M.A. FORD carbide uncoated end mill with standard flute and helix. Cylindrical 0.6250 connection, corner radius 0.0900 2.29mm. Made in USA, toolpost connection type cylindrical. Standard flute, single end, TuffCut® X-AL.

Key Details

Materials & Finish

  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.6250

Grades & Coatings

  • Alternate Description: M.A. FORD 13862501NR.090 Standard Helix End Mill Carbide Uncoated Corner Radius 0.0900 2.29MM Standard Flute Flutes 3 Single End TuffCut® X-AL

Other Details

  • Brand: M.A. FORD
  • Shipping State: IOWA
  • Made In Usa: Yes

Technical Overview

What It Does

Cuts material with standard flute and helix. Performs end milling with corner radius 0.0900. Suitable for standard toolpost use.

Composition

Carbide uncoated. Made in USA. Cylindrical connection 0.6250.

Typical Uses

End milling in machine with cylindrical toolpost. Used with standard helix and flute. Operates with corner radius 0.0900.

Products specifications
Attribute name Attribute value
Shipping State IOWA
Cutter Type Solid End Mill
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) CYLINDRICAL0.6250
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 6.0000 152.40MM
Shank Or Pilot Diameter 0.6250 15.88MM - 5/8
Family Group TuffCut® X-AL
Coolant Thru Non Coolant
Mach Side Connection Size 0.6250 15.88MM - 5/8
Tool Diameter 0.6250 15.88MM - 5/8
Flutes Or Inserts 3
Length Type Long / With Neck
Performance Rating High Performance
Length Of Cut 0.7500 19.05MM
End Of Tool Shape Corner Radius
Cutter Style Carbide Bull Nose Finisher
Single Or Double End Single End
Corner Radius 0.0900 2.29MM
Inch Or Metric Inch
Helix Angle 36°
Center Cutting Center Cutting
Neck Length 3.3750 85.73MM
