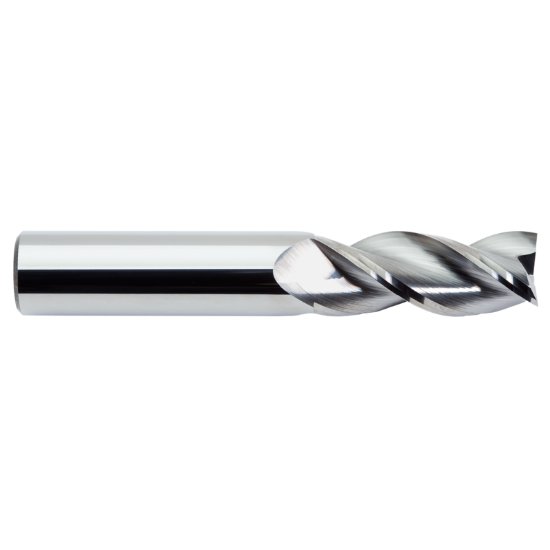

Picture of M.A. Ford 13850003R.030F Dia 1/2 Sh 0.50 Loc 1.2500 Oal3.00 End Mill Standard Flute Standard Helix Carbide Fordlube Single End Corner Radius0.0300 0.76mm Tuffcut® X-Al

M.A. Ford 13850003R.030F Dia 1/2 Sh 0.50 Loc 1.2500 Oal3.00 End Mill Standard Flute Standard Helix Carbide Fordlube Single End Corner Radius0.0300 0.76mm Tuffcut® X-Al

Part Number: MAF10625

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1002485
Vendor: Sussex Tool and Supply
$158.14

M.A. FORD carbide end mill with standard flute and helix. Cylindrical connection 0.5000 diameter. Corner radius 0.0300, 0.76mm. Made in USA with Fordlube coating.

Key Details

Materials & Finish

  • Coating: Fordlube
  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.5000

Grades & Coatings

  • Alternate Description: M.A. FORD 13850003R.030F Standard Helix End Mill Carbide Fordlube Corner Radius 0.0300 0.76MM Standard Flute Flutes 3 Single End TuffCut® X-AL

Other Details

  • Brand: M.A. FORD
  • Shipping State: IOWA
  • Made In Usa: Yes

Technical Overview

What It Does

Cuts material with standard helix and flute. Performs single end corner radius cutting. Suitable for standard machining operations.

Composition

Carbide tool material. Fordlube coating. Cylindrical connection 0.5000.

Typical Uses

End milling operations. Machining with standard flute. Use in machine toolpost with cylindrical connection.

Products specifications
Attribute name Attribute value
Shipping State IOWA
Cutter Type Solid End Mill
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) CYLINDRICAL0.5000
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 3.0000 76.20MM
Shank Or Pilot Diameter 0.5000 12.70MM - 1/2
Family Group TuffCut® X-AL
Coolant Thru Non Coolant
Coating Fordlube
Mach Side Connection Size 0.5000 12.70MM - 1/2
Tool Diameter 0.5000 12.70MM - 1/2
Flutes Or Inserts 3
Length Type Standard
Performance Rating High Performance
Length Of Cut 1.2500 31.75MM
End Of Tool Shape Corner Radius
Cutter Style Carbide Bull Nose Finisher
Single Or Double End Single End
Corner Radius 0.0300 0.76MM
Inch Or Metric Inch
Helix Angle 36°
Center Cutting Center Cutting
