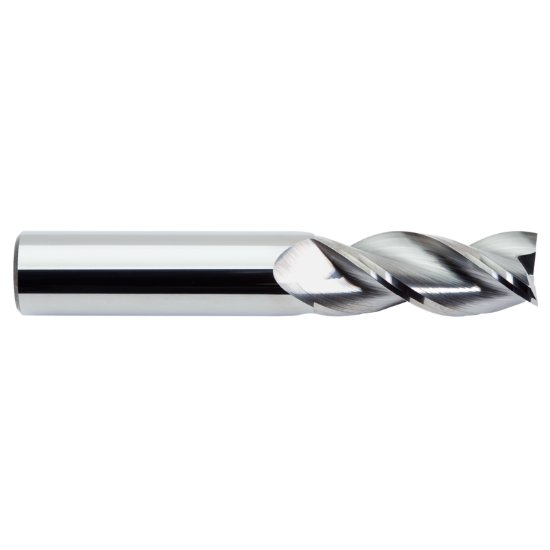

Picture of M.A. Ford 13837511R.030F Dia 3/8 Sh 0.3750 Loc 1.00 Oal3.00 End Mill Standard Flute Standard Helix Carbide Fordlube Single End Corner Radius0.0300 0.76mm Tuffcut® X-Al

M.A. Ford 13837511R.030F Dia 3/8 Sh 0.3750 Loc 1.00 Oal3.00 End Mill Standard Flute Standard Helix Carbide Fordlube Single End Corner Radius0.0300 0.76mm Tuffcut® X-Al

Part Number: MAF10620

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1002034
Vendor: Sussex Tool and Supply
$137.32

M.A. FORD carbide end mill has standard flute and helix. Three flutes with single end corner radius 0.0300 0.76mm. Fordlube coating, cylindrical machine post connection 0.3750. Made in USA.

Key Details

Materials & Finish

  • Coating: Fordlube
  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.3750

Grades & Coatings

  • Alternate Description: M.A. FORD 13837511R.030F Standard Helix End Mill Carbide Fordlube Corner Radius 0.0300 0.76MM Standard Flute Flutes 3 Single End TuffCut® X-AL

Other Details

  • Brand: M.A. FORD
  • Shipping State: IOWA
  • Made In Usa: Yes

Technical Overview

What It Does

Cuts material with standard helix and flute. Performs single end corner radius cutting. Suitable for standard machining operations.

Composition

Carbide tool material. Fordlube coating. Cylindrical connection 0.3750.

Typical Uses

End milling operations. Cutting with 3 flutes. Use in machine toolpost with cylindrical mount.

Products specifications
Attribute name Attribute value
Shipping State IOWA
Cutter Type Solid End Mill
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) CYLINDRICAL0.3750
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 3.0000 76.20MM
Shank Or Pilot Diameter 0.3750 9.52MM - 3/8
Family Group TuffCut® X-AL
Coolant Thru Non Coolant
Coating Fordlube
Mach Side Connection Size 0.3750 9.53MM - 3/8
Tool Diameter 0.3750 9.53MM - 3/8
Flutes Or Inserts 3
Length Type Long
Performance Rating High Performance
Length Of Cut 1.0000 25.40MM
End Of Tool Shape Corner Radius
Cutter Style Carbide Bull Nose Finisher
Single Or Double End Single End
Corner Radius 0.0300 0.76MM
Inch Or Metric Inch
Helix Angle 36°
Center Cutting Center Cutting
