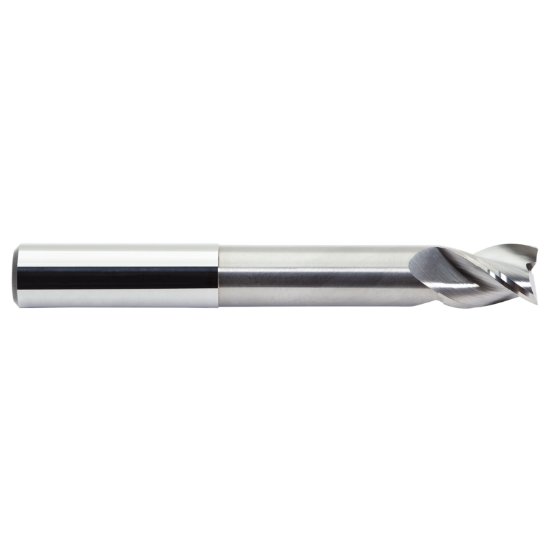

Picture of M.A. Ford 13831210Nr.015 Dia 5/16 Sh 0.3125 Loc 0.4375 Oal6.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0150 0.38mm Tuffcut® X-Al

M.A. Ford 13831210Nr.015 Dia 5/16 Sh 0.3125 Loc 0.4375 Oal6.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0150 0.38mm Tuffcut® X-Al

Part Number: MAF11822

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1002557
Vendor: Sussex Tool and Supply
$148.50

M.A. FORD carbide uncoated end mill with standard flute and helix. Cylindrical connection 0.3125 inch diameter. Corner radius 0.0150 inch, 0.38 mm. Made in USA.

Key Details

Materials & Finish

  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.3125

Grades & Coatings

  • Alternate Description: M.A. FORD 13831210NR.015 Standard Helix End Mill Carbide Uncoated Corner Radius 0.0150 0.38MM Standard Flute Flutes 3 Single End TuffCut® X-AL

Other Details

  • Brand: M.A. FORD
  • Shipping State: IOWA
  • Made In Usa: Yes

Technical Overview

What It Does

Cuts material with standard helix and flute. Performs single end corner radius cutting. Suitable for standard toolpost operations.

Composition

Carbide uncoated, cylindrical connection 0.3125, corner radius 0.0150.

Typical Uses

Used in machine operations with cylindrical toolpost. Fits standard flutes and helix designs. Operates with 0.3125 diameter and 0.4375 location.

Products specifications
Attribute name Attribute value
Shipping State IOWA
Cutter Type Solid End Mill
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) CYLINDRICAL0.3125
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 6.0000 152.40MM
Shank Or Pilot Diameter 0.3125 7.93MM - 5/16
Family Group TuffCut® X-AL
Coolant Thru Non Coolant
Mach Side Connection Size 0.3125 7.94MM - 5/16
Tool Diameter 0.3125 7.94MM - 5/16
Flutes Or Inserts 3
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.4375 11.11MM
End Of Tool Shape Corner Radius
Cutter Style Carbide Bull Nose Finisher
Single Or Double End Single End
Corner Radius 0.0150 0.38MM
Inch Or Metric Inch
Helix Angle 36°
Center Cutting Center Cutting
Neck Length 3.1250 79.38MM
