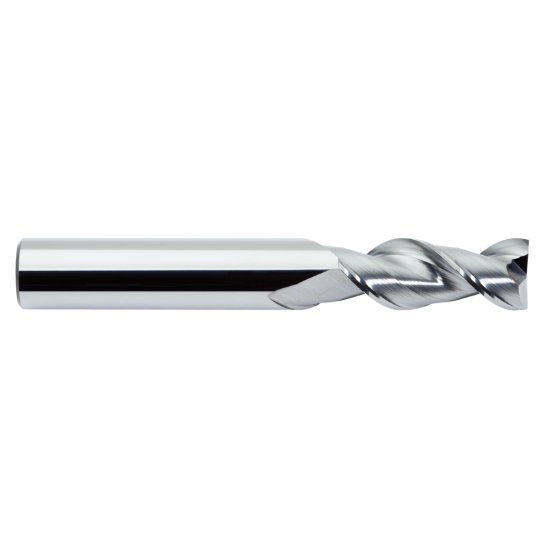

Picture of M.A. Ford 13618754R.040 Dia 3/16 Sh 0.1875 Loc 0.7500 Oal2.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.0400 1.02mm Tuffcut® Al

M.A. Ford 13618754R.040 Dia 3/16 Sh 0.1875 Loc 0.7500 Oal2.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.0400 1.02mm Tuffcut® Al

Part Number: MAF10611

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1001680
Vendor: Sussex Tool and Supply
$78.65

M.A. FORD carbide uncoated end mill with 3/16 diameter, 0.1875 shank, 0.7500 loc, 2.50 oal. Single end standard flute, corner radius 0.0400. Made in USA, cylindrical toolpost connection.

Key Details

Materials & Finish

  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.1875

Grades & Coatings

  • Alternate Description: M.A. FORD 13618754R.040 High Helix End Mill Carbide Uncoated Corner Radius 0.0400 1.02MM Standard Flute Flutes 2 Single End TuffCut® AL

Other Details

  • Brand: M.A. FORD
  • Shipping State: IOWA
  • Made In Usa: Yes

Technical Overview

What It Does

Cuts material with high helix design. Performs standard flute operations. Suitable for corner radius 0.0400.

Composition

Carbide material, uncoated. Cylindrical connection 0.1875. Diameter 3/16.

Typical Uses

End milling operations. Used in machine toolpost. Works with TuffCut® AL material.

Products specifications
Attribute name Attribute value
Shipping State IOWA
Cutter Type Solid End Mill
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) CYLINDRICAL0.1875
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 2.5000 63.50MM
Shank Or Pilot Diameter 0.1875 4.76MM - 3/16
Family Group TuffCut® AL
Coolant Thru Non Coolant
Mach Side Connection Size 0.1875 4.76MM - 3/16
Tool Diameter 0.1875 4.76MM - 3/16
Flutes Or Inserts 2
Length Type Standard
Performance Rating High Performance
Length Of Cut 0.7500 19.05MM
End Of Tool Shape Corner Radius
Cutter Style Carbide Bull Nose Finisher
Single Or Double End Single End
Corner Radius 0.0400 1.02MM
Inch Or Metric Inch
Helix Angle 45°
Center Cutting Center Cutting
