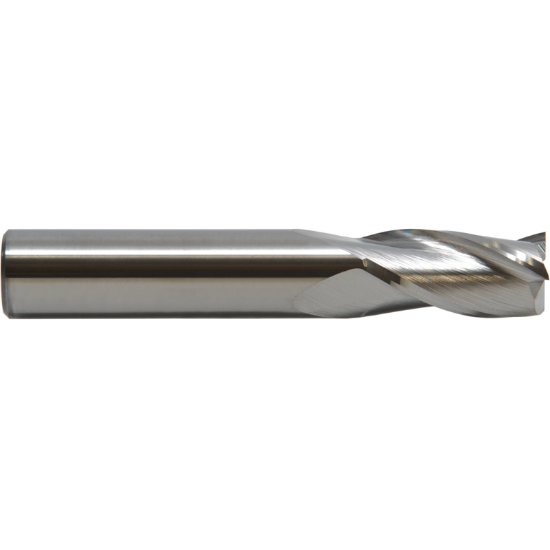

Picture of M.A. Ford 11650002C Dia 1/2 SH 0.50 LOC 1.2500 OAL3.00 End Mill Standard Flute Standard Helix Carbide TiCN Single End Corner Radius0.0200 0.51mm TuffCut® GP

M.A. Ford 11650002C Dia 1/2 SH 0.50 LOC 1.2500 OAL3.00 End Mill Standard Flute Standard Helix Carbide TiCN Single End Corner Radius0.0200 0.51mm TuffCut® GP

Part Number: MAF11371 0.500 x 0.500 x 1.250 x 3.000
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1240528
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

M.A. FORD 11650002C Standard Helix End Mill Carbide TiCN Corner Radius 0.0200 0.51MM Standard Flute Flutes 3 Single End TuffCut® GP Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 3
Tool Dia 0.5000 12.70MM - 1/2
Length Of Cut 1.2500 31.75MM
Geometry & Angles
Corner Radius 0.0200 0.51MM
Helix Angle 30
Performance & Capacity
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, <42HRC Steel
Performance Rating General Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TICN
