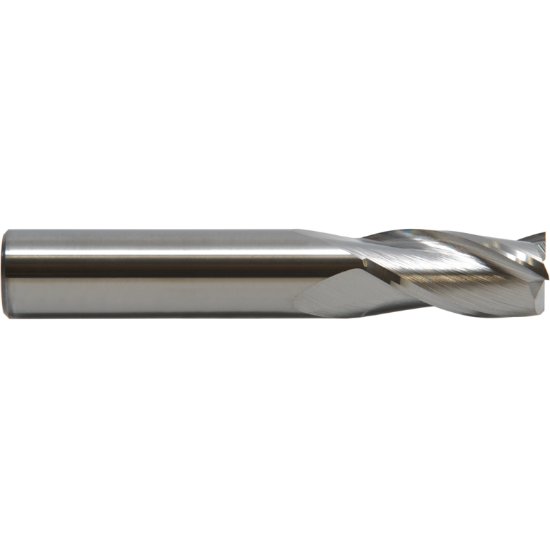

Picture of M.A. Ford 11618758C Dia 3/16 SH 0.1875 LOC 0.6250 OAL2.00 End Mill Standard Flute Standard Helix Carbide TiCN Single End Corner Radius0.0100 0.25mm TuffCut® GP

M.A. Ford 11618758C Dia 3/16 SH 0.1875 LOC 0.6250 OAL2.00 End Mill Standard Flute Standard Helix Carbide TiCN Single End Corner Radius0.0100 0.25mm TuffCut® GP

Part Number: MAF11697 0.188 x 0.188 x 0.625 x 2.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1240516
Vendor: Sussex Tool and Supply
$22.46
M.A. FORD 11618758C Standard Helix End Mill Carbide TiCN Corner Radius 0.0100 0.25MM Standard Flute Flutes 3 Single End TuffCut® GP Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, <42HRC Steel
Coating TICN
Mach Side Connection Size 0.1875 4.76MM
Overall Length 2.0000 50.80MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 3
Tool Dia 0.1875 4.76MM - 3/16
Length Type STANDARD
Performance Rating General Performance
Length Of Cut 0.6250 15.88MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0100 0.25MM
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
