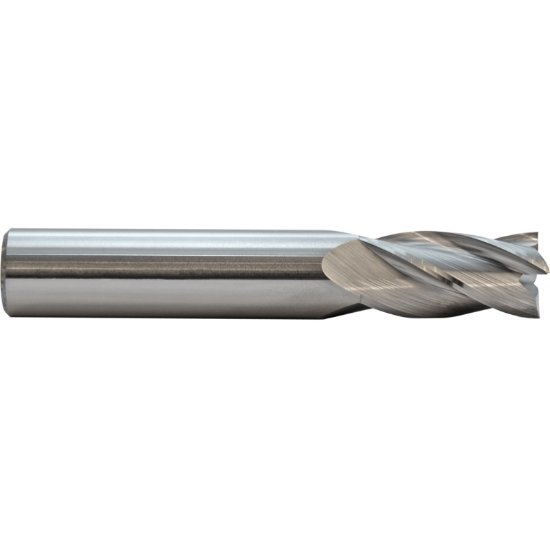

Picture of M.A. Ford 11178743C Dia 20mm Sh 0.7874 Loc 1.4961 Oal4.0157 End Mill Standard Flute Standard Helix Carbide Ticn Single End Corner Radius1.0000 25.40mm Tuffcut® Gp

M.A. Ford 11178743C Dia 20mm Sh 0.7874 Loc 1.4961 Oal4.0157 End Mill Standard Flute Standard Helix Carbide Ticn Single End Corner Radius1.0000 25.40mm Tuffcut® Gp

Part Number: MAF10142

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1003137
Vendor: Sussex Tool and Supply
$450.84

M.A. FORD carbide end mill has standard flute and TiCN coating. It features cylindrical connection 0.7874 inch diameter. Tool made in USA with 1.4961 loc and 4.0157 oal. Single end corner radius 1.0000.

Key Details

Materials & Finish

  • Coating: TiCN
  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.7874

Grades & Coatings

  • Alternate Description: M.A. FORD 11178743C Standard Helix End Mill Carbide TiCN Corner Radius 1.0000 25.40MM Standard Flute Flutes 4 Single End TuffCut® GP

Other Details

  • Brand: M.A. FORD
  • Shipping State: IOWA
  • Made In Usa: Yes

Technical Overview

What It Does

Cuts material with standard helix and flute. Performs single end corner radius cutting. Suitable for standard toolpost operations.

Composition

Carbide tool material with TiCN coating. Cylindrical connection 0.7874. Standard flute and helix design.

Typical Uses

Used in machining with cylindrical toolpost. Operates in standard setups. Ideal for cutting with 1.0000 corner radius.

Products specifications
Attribute name Attribute value
Shipping State IOWA
Cutter Type Solid End Mill
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) CYLINDRICAL0.7874
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 4.0157 102.00MM
Shank Or Pilot Diameter 0.7874 20.00MM
Family Group TuffCut® GP
Coolant Thru Non Coolant
Coating TiCN
Mach Side Connection Size 0.7874 20.00MM
Tool Diameter 0.7874 20.00MM
Flutes Or Inserts 4
Length Type Standard
Performance Rating General Performance
Length Of Cut 1.4961 38.00MM
End Of Tool Shape Corner Radius
Cutter Style Carbide Bull Nose Finisher
Single Or Double End Single End
Corner Radius 1.0000 25.40MM
Inch Or Metric Metric
Helix Angle 30°
Center Cutting Center Cutting
