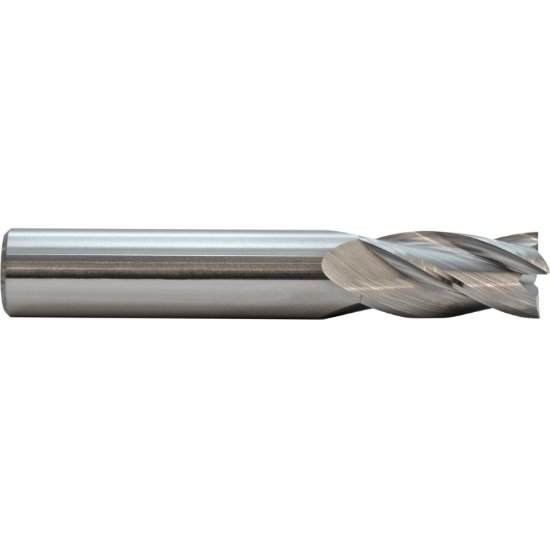

Picture of M.A. Ford 11112511C Dia 1/8 SH 0.1250 LOC 0.3750 OAL1.50 End Mill Standard Flute Standard Helix Carbide TiCN Single End Corner Radius0.0150 0.38mm TuffCut® GP

M.A. Ford 11112511C Dia 1/8 SH 0.1250 LOC 0.3750 OAL1.50 End Mill Standard Flute Standard Helix Carbide TiCN Single End Corner Radius0.0150 0.38mm TuffCut® GP

Part Number: MAF75045 0.125 x 0.125 x 0.375 x 1.500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1240272
Vendor: Sussex Tool and Supply
$16.64
M.A. FORD 11112511C Standard Helix End Mill Carbide TiCN Corner Radius 0.0150 0.38MM Standard Flute Flutes 4 Single End TuffCut® GP Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, <42HRC Steel
Coating TICN
Mach Side Connection Size 0.1250 3.18MM
Overall Length 1.5000 38.10MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1250 3.17MM - 1/8
Flutes/Inserts 4
Tool Dia 0.1250 3.18MM - 1/8
Length Type STANDARD
Performance Rating General Performance
Length Of Cut 0.3750 9.53MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0150 0.38MM
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
