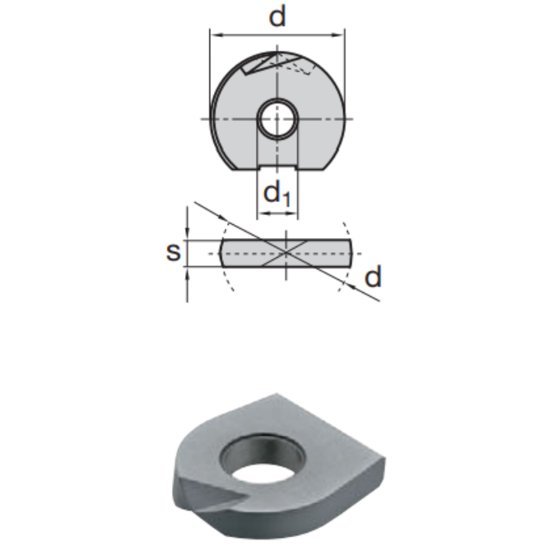

Picture of LMT Fette WPR 32 N LCP40M Milling Insert Ball Mill 1.260 Cutter Diameter

LMT Fette WPR 32 N LCP40M Milling Insert Ball Mill 1.260 Cutter Diameter

Part Number: LMT9078158 ISO: WPR 32 N LCP40M ANSI:WPR 32 N LCP40M
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1013824
Vendor: Sussex Tool and Supply
$162.28
This product has a minimum quantity of 10

Description

LMT FETTE 9078158 Flat Blade Insert Positive AlCrN 1.2600 32.00MM Cutter Dia HC-P40 – PVD-AlCrN coated Highly wear-resistant grade with high toughness for wet milling and dry milling, in particular, steel, cast steel and cast iron.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type Finishing, Semi Finishing
Insert Style BN
Insert Shape/Cutter Pocket Shape Flat Blade
Insert Type Positive
Dimensions & Sizing
Tool Dia 1.2598 32.00MM
Insert Size Ic 32
Geometry & Angles
Corner Radius 0.6299 16.00MM
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Materials & Finish
Cutting Edge Mat Carbide
Coating ALCrN
Grade LCP40M
Compatibility & Fit
Insert Fits Ball Mill
