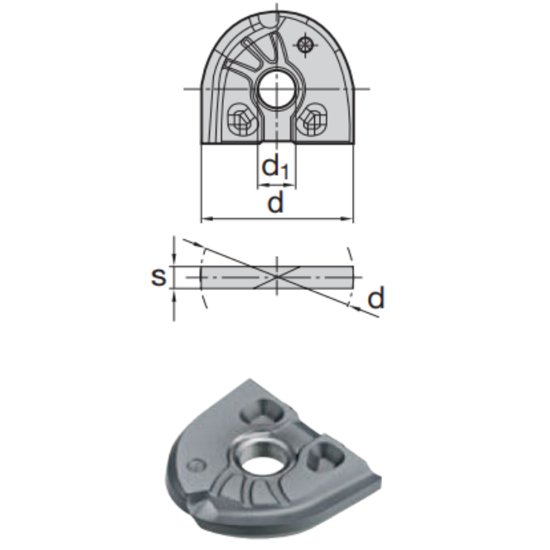

Picture of LMT Fette WPR 32 AS LWNS30M Milling Insert Ball Mill 1.260 Cutter Diameter

LMT Fette WPR 32 AS LWNS30M Milling Insert Ball Mill 1.260 Cutter Diameter

Part Number: LMT9120405 ISO: WPR 32 AS LWNS30M ANSI:WPR 32 AS LWNS30M
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$102.65
This product has a minimum quantity of 10
SKU: 1013832

Description

LMT FETTE 9120405 Flat Blade Insert Positive Uncoated 1.2600 32.00MM Cutter Dia HC-K30 uncoated Milling grade with high wear resistance and high cutting edge stability for machining of aluminium alloys, titan and non-ferrous metals with high cutting speeds.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type Finishing, Semi Finishing
Insert Style BN
Insert Shape/Cutter Pocket Shape Flat Blade
Insert Type Positive
Dimensions & Sizing
Tool Dia 1.2598 32.00MM
Insert Size Ic 32
Geometry & Angles
Corner Radius 0.6299 16.00MM
Performance & Capacity
Cut Rating Gray Iron, Aluminum, High Temp, <40HRC Steel
Materials & Finish
Cutting Edge Mat Carbide
Grade LWNS30M
Compatibility & Fit
Insert Fits Ball Mill
