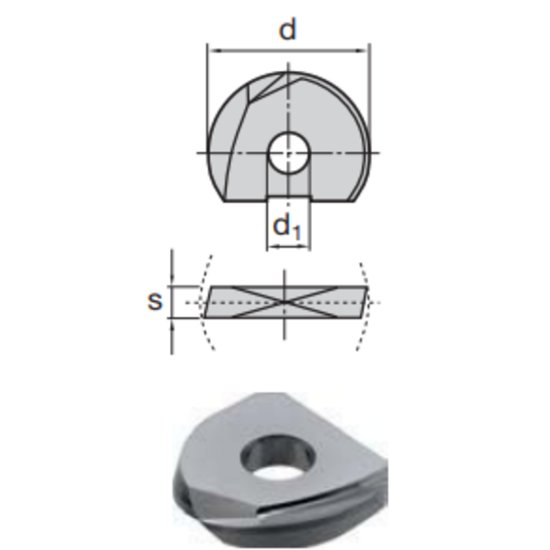

Picture of LMT Fette WPR 25 SF LCHK10M Milling Insert Ball Mill 0.984 Cutter Diameter

LMT Fette WPR 25 SF LCHK10M Milling Insert Ball Mill 0.984 Cutter Diameter

Part Number: LMT7100734 ISO: WPR 25 SF LCHK10M ANSI:WPR 25 SF LCHK10M
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1013773
Vendor: Sussex Tool and Supply
$193.64
This product has a minimum quantity of 10

Description

LMT FETTE 7100734 Flat Blade Insert Positive TiAIN + AlX 0.9840 24.99MM Cutter Dia HC-K10 fine-grain PVD TiAIN ALX coated Highly wear-resistant grade with high toughness for wet and dry machining of steel, cast steel, cast iron and non-ferrous metals. Especially suitable for hard machining of materials
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type Finishing, Semi Finishing
Insert Style BN
Insert Shape/Cutter Pocket Shape Flat Blade
Insert Type Positive
Dimensions & Sizing
Tool Dia 0.9840 24.99MM
Insert Size Ic 25
Geometry & Angles
Corner Radius 0.4921 12.50MM
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAIN + AlX
Grade LCHK10M
Compatibility & Fit
Insert Fits Ball Mill
