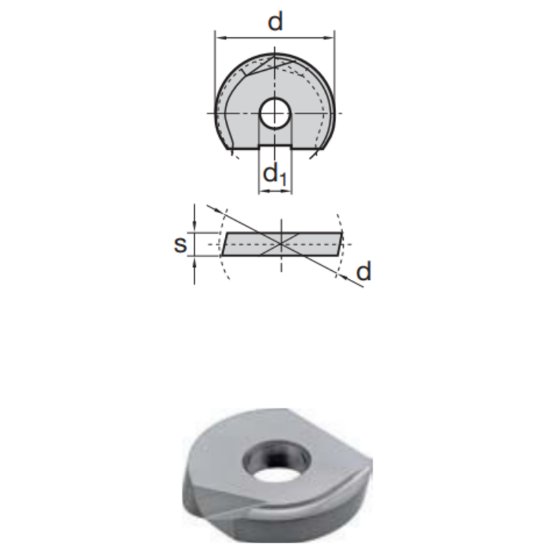

Picture of LMT Fette WPR 25 CF LCPK10M Milling Insert Ball Mill 0.984 Cutter Diameter

LMT Fette WPR 25 CF LCPK10M Milling Insert Ball Mill 0.984 Cutter Diameter

Part Number: LMT6132341 ISO: WPR 25 CF LCPK10M ANSI:WPR 25 CF LCPK10M
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1013760
Vendor: Sussex Tool and Supply
$149.93
This product has a minimum quantity of 10

Description

LMT FETTE 6132341 Flat Blade Insert Positive AlCrN 0.9840 24.99MM Cutter Dia HC-K10 PVD- AlCrN coated Highly wear-resistant coated milling grad with high cutting edge stability for fine machining alloyed and unalloyed tool steels. High stability and wear-resistance specifically by high temperatures. Suitable for dry machining and high speed cutting up to 54 HRC.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type Finishing, Semi Finishing
Insert Style BN
Insert Shape/Cutter Pocket Shape Flat Blade
Insert Type Positive
Dimensions & Sizing
Tool Dia 0.9840 24.99MM
Insert Size Ic 25
Geometry & Angles
Corner Radius 0.4921 12.50MM
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Materials & Finish
Cutting Edge Mat Carbide
Coating ALCrN
Grade LCPK10M
Compatibility & Fit
Insert Fits Ball Mill
