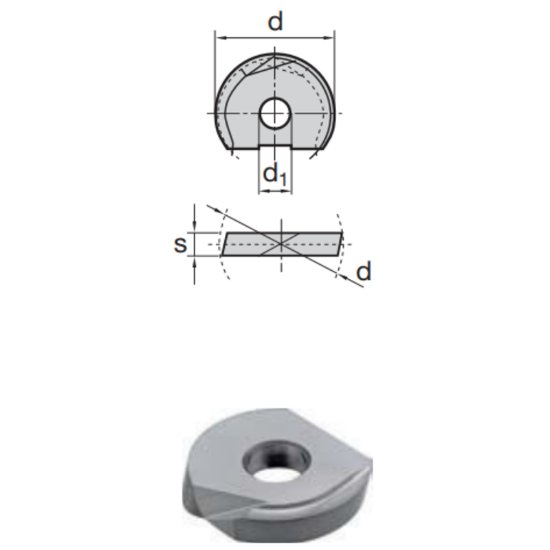

Picture of LMT Fette WPR 25 CF LCP40M Milling Insert Ball Mill 0.984 Cutter Diameter

LMT Fette WPR 25 CF LCP40M Milling Insert Ball Mill 0.984 Cutter Diameter

Part Number: LMT9077244 ISO: WPR 25 CF LCP40M ANSI:WPR 25 CF LCP40M
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1013820
Vendor: Sussex Tool and Supply
$129.78
This product has a minimum quantity of 10

Description

LMT FETTE 9077244 Flat Blade Insert Positive AlCrN 0.9840 24.99MM Cutter Dia HC-P40 – PVD-AlCrN coated Highly wear-resistant grade with high toughness for wet milling and dry milling, in particular, steel, cast steel and cast iron.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type Finishing, Semi Finishing
Insert Style BN
Insert Shape/Cutter Pocket Shape Flat Blade
Insert Type Positive
Dimensions & Sizing
Tool Dia 0.9840 24.99MM
Insert Size Ic 25
Geometry & Angles
Corner Radius 0.4921 12.50MM
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Materials & Finish
Cutting Edge Mat Carbide
Coating ALCrN
Grade LCP40M
Compatibility & Fit
Insert Fits Ball Mill
