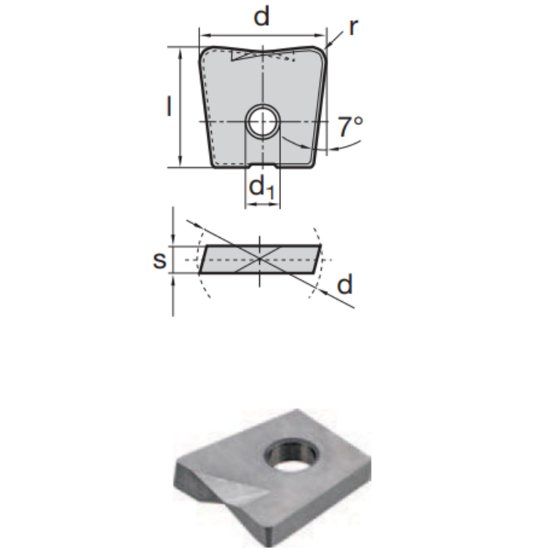

Picture of LMT Fette WPB 0750-N-2 LDP05B-PCD Tipped Milling Insert Back Draft

LMT Fette WPB 0750-N-2 LDP05B-PCD Tipped Milling Insert Back Draft

Part Number: LMT2915113

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: 1014025
Vendor: Sussex Tool and Supply
$251.22
This product has a minimum quantity of 10
PCD stands for “Poly Crystalline Diamond”, the hardest available cutting material. PCD is a synthetic diamond produced by sintering together selected diamond particles with a metal matrix at high temperature and high pressure. The result is 90-95% diamond content material that reaches a hardness close to 6000 HV. In addition, the small amount of the binder gives the material additional toughness that makes it an efficient cutting material.
Products specifications
Attribute name Attribute value
Insert Application Semi Finishing, Finishing
Cutter Type Insert
Insert Size (IC) 750
Insert Type Positive
Cutting Edge Definition PCD stands for “Poly Crystalline Diamond”, the hardest available cutting material. PCD is a synthetic diamond produced by sintering together selected diamond particles with a metal matrix at high temperature and high pressure. The result is 90-95% diamond content material that reaches a hardness close to 6000 HV. In addition, the small amount of the binder gives the material additional toughness that makes it an efficient cutting material.
Insert Style BD
Grade LDP05B-PCD
Insert Or Tool INSERT
Insert Shape Or Cutter Pocket Shape Flat Blade
Shipping State ILLINOIS
Cutting Edge Material PCD
Insert Fits Back Draft
Corner Radius 0.0310 0.79MM
Made In USA No
