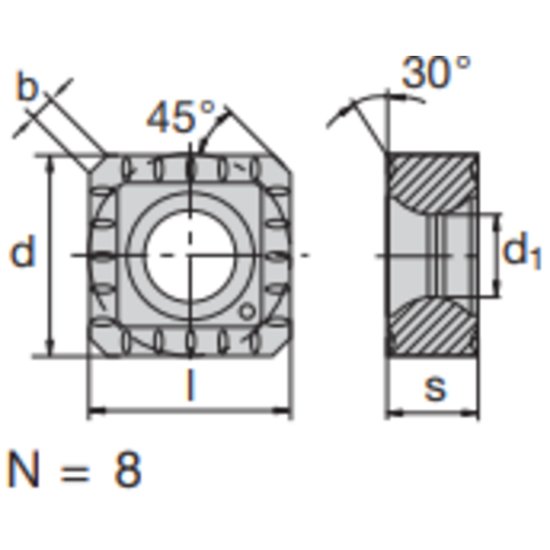

Picture of LMT Fette SNKU 1205 AN-TR LC280QN Milling Insert Square

LMT Fette SNKU 1205 AN-TR LC280QN Milling Insert Square

Part Number: LMT1052327 ISO: SNKU 1205 AN-TR LC280QN ANSI:SNKU 1205 AN-TR LC280QN
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
This product has a minimum quantity of 10
SKU: 1013493

Description

LMT FETTE 1052327 Square Insert Negative TiN Eminently suited for high feed rates. A combination of tough carbide substrate with a double PVD coating makes it obvious that these indexable inserts are ideal for roughing. The inserts are completely coated with AL6 and have an additional TiN-layer at circumference which allows to observe wear easier
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type Roughing, Semi Finishing
Insert Style SN
Insert Shape/Cutter Pocket Shape Square
Insert Type Negative
Dimensions & Sizing
Insert Size Ic 12
Performance & Capacity
Cut Rating Gray Iron, Aluminum, High Temp, <40HRC Steel
Depth Of Cut Max 0.2800
Materials & Finish
Cutting Edge Mat Carbide
Coating TIN
Grade LC280QN
Compatibility & Fit
Insert Fits Square
