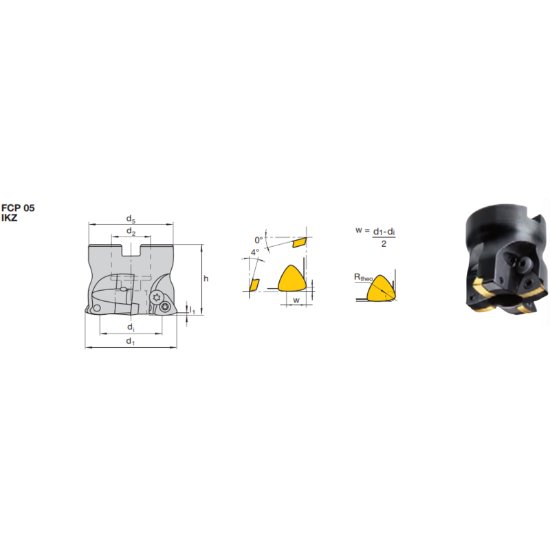

Picture of LMT Fette FCP05 X65.300AN-I 3 Milling Feed Mill Milling Cutter 3.000 Cutter Diameter

LMT Fette FCP05 X65.300AN-I 3 Milling Feed Mill Milling Cutter 3.000 Cutter Diameter

Part Number: LMT1950320 ISO: FCP05 X65.300AN-I 3 ANSI:FCP05 X65.300AN-I 3
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1013640

Description

LMT FETTE 1950320 Feed Mill SHELL1.2500 Positive 3.0000 76.20MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Indexable Feed Mill
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style FC
Insert Shape/Cutter Pocket Shape Other
Insert Type Positive
Dimensions & Sizing
Overall Length 1.9700 50.04MM
Flutes/Inserts 5
Tool Dia 3.0000 76.20MM
Insert Size Ic 65
Geometry & Angles
Corner Radius 0.0800 2.03MM
Performance & Capacity
Cut Dia Min 2.3500 59.69MM
Depth Of Cut Max 0.0600
Materials & Finish
Tool Material Steel
