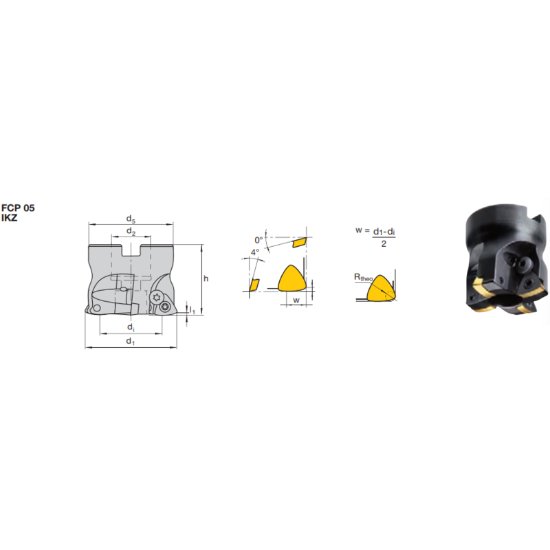

Picture of LMT Fette FCP05 X11.300AC-I 3 Milling Feed Mill Milling Cutter 3.000 Cutter Diameter

LMT Fette FCP05 X11.300AC-I 3 Milling Feed Mill Milling Cutter 3.000 Cutter Diameter

Part Number: LMT1950328 ISO: FCP05 X11.300AC-I 3 ANSI:FCP05 X11.300AC-I 3
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1013636

Description

LMT FETTE 1950328 Feed Mill SHELL1.2500 Positive 3.0000 76.20MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Indexable Feed Mill
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style FC
Insert Shape/Cutter Pocket Shape Other
Insert Type Positive
Dimensions & Sizing
Overall Length 1.9700 50.04MM
Flutes/Inserts 7
Tool Dia 3.0000 76.20MM
Insert Size Ic 11
Geometry & Angles
Corner Radius 0.1500 3.81MM
Performance & Capacity
Cut Dia Min 2.6000 66.04MM
Depth Of Cut Max 0.0400
Materials & Finish
Tool Material Steel
