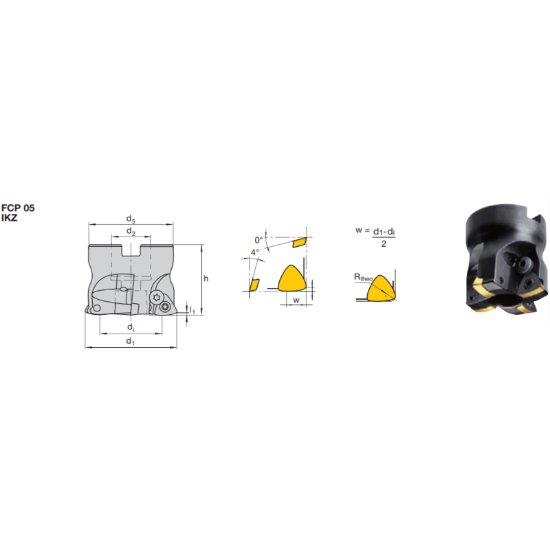

Picture of LMT Fette FCP05 X11.250AN-I 2.5 Milling Feed Mill Milling Cutter 2.500 Cutter Diameter

LMT Fette FCP05 X11.250AN-I 2.5 Milling Feed Mill Milling Cutter 2.500 Cutter Diameter

Part Number: LMT1950327 ISO: FCP05 X11.250AN-I 2.5 ANSI:FCP05 X11.250AN-I 2.5
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1013635

Description

LMT FETTE 1950327 Feed Mill SHELL1.5000 Positive 2.5000 63.50MM - 2-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Indexable Feed Mill
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style FC
Insert Shape/Cutter Pocket Shape Other
Insert Type Positive
Dimensions & Sizing
Overall Length 1.9700 50.04MM
Flutes/Inserts 6
Tool Dia 2.5000 63.50MM - 2-1/2
Insert Size Ic 11
Geometry & Angles
Corner Radius 0.1500 3.81MM
Performance & Capacity
Cut Dia Min 2.1000 53.34MM
Depth Of Cut Max 0.0400
Materials & Finish
Tool Material Steel
