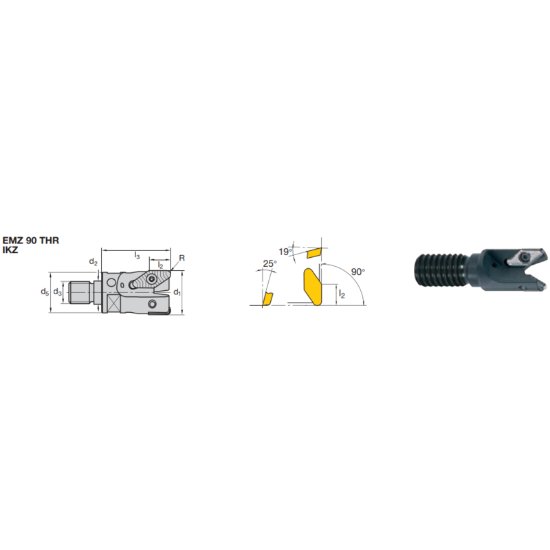

Picture of LMT Fette EMU90 A17 . 100SEI Milling 90.0°, End Mill Milling Cutter 1.500 Cutter Diameter

LMT Fette EMU90 A17 . 100SEI Milling 90.0°, End Mill Milling Cutter 1.500 Cutter Diameter

Part Number: LMT1950303 ISO: EMU90 A17 . 100SEI ANSI:EMU90 A17 . 100SEI
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$368.05
SKU: 1013599

Description

LMT FETTE 1950303 35.0 ° 90.0°, End Mill Thread On SCREWM16 Positive 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style VC
Insert Shape/Cutter Pocket Shape 35.0°
Insert Type Positive
Dimensions & Sizing
Overall Length 1.9700 50.04MM
Flutes/Inserts 2
Tool Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 11 "21"
Geometry & Angles
Corner Radius 0.1200 3.05MM
Cutting Edge Angle 90.0°
Performance & Capacity
Depth Of Cut Max 0.5900
Materials & Finish
Tool Material Steel
