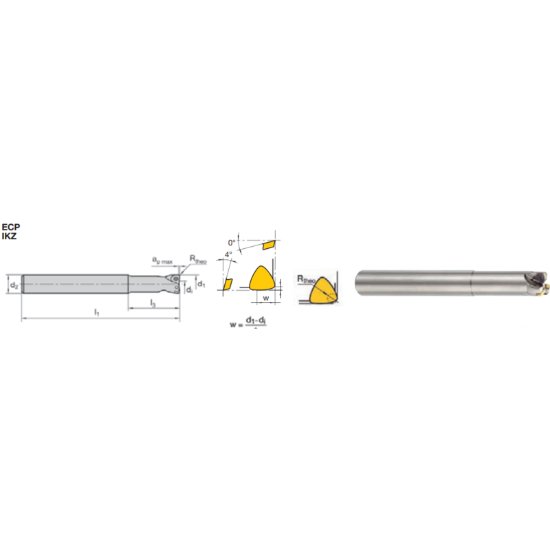

Picture of LMT Fette ECP05 X65.125WF-I 60 Milling Feed Mill Milling Cutter 1.250 Cutter Diameter

LMT Fette ECP05 X65.125WF-I 60 Milling Feed Mill Milling Cutter 1.250 Cutter Diameter

Part Number: LMT1950334 ISO: ECP05 X65.125WF-I 60 ANSI:ECP05 X65.125WF-I 60
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1013630
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

LMT FETTE 1950334 Feed Mill End Mill Weldon 1.2500 Positive 1.2500 31.75MM - 1-1/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Indexable Feed Mill
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style EC
Insert Shape/Cutter Pocket Shape Other
Insert Type Positive
Dimensions & Sizing
Overall Length 8.0000 203.20MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Tool Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 11
Geometry & Angles
Corner Radius 0.1500 3.81MM
Performance & Capacity
Cut Dia Min 0.8500 21.59MM
Depth Of Cut Max 0.0400
Materials & Finish
Tool Material Steel
